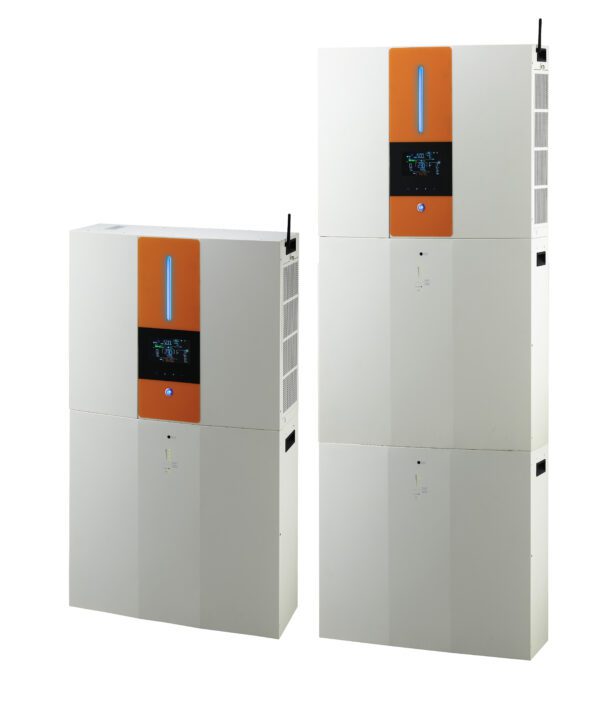

Voltronic ESS510 Energy Storage System Inverter 5.5Kw and Lifepo4 Battery 5.12Kw
€1.650,00
- Description
- Additional information
Description
Voltronic ESS510 Energy Storage System Inverter 5.5Kw and Lifepo4 Battery 5.12Kw
– LifePO4 Integrated Inverter and Battery Module
– Pure sine wave output
-Self-consumption and Feedback to the Network.
-Programmable power priority for PV, battery or grid
-User-adjustable battery charging current
-Multiple programmable operation modes: grid-tie, off-grid and grid-tie with backup
-Built-in timer for various on/off operation modes
-Multiple communication for USB, RS232, Modbus, SNMP, GPRS and Wi-Fi
• Monitoring software for real-time status display and control
– Improves AC/solar charger to 100 A
-Scalable lithium-ion battery expansion (up to 10 5.12kw batteries)
-VDE 4105 and other certifications for on-grid installations
|
ESS510 ENERGY STORAGE SYSTEM
|
||
|
|
||
|
MODEL
|
ESS 5.5KW
|
|
|
Maximum PV Input Power
|
6500 W |
|
|
Rated Output Power
|
5500 W |
|
|
Maximum Charging Power
|
2880 W |
|
|
PV INPUT (DC)
|
||
|
Nominal DC Voltage / Maximum DC Voltage |
360 VDC / 500 VDC |
|
|
Start-up Voltage / Initial Feeding Voltage |
116 VDC / 150 VDC |
|
|
MPP Voltage Range |
120 VDC ~ 450 VDC |
|
|
Number of MPP Trackers / Maximum Input Current |
2 / 2 x 13 A |
|
|
GRID OUTPUT
|
||
|
Nominal Output Voltage |
208/220/230/240 VAC |
|
|
Output Voltage Range |
184 – 264.5 VAC* |
|
|
Max. Output Current |
23.9A* |
|
|
Maximum Conversion Efficiency (DC/AC) |
96% |
|
|
European Efficiency @ Vnominal |
95% |
|
|
AC INPUT
|
||
|
AC Start-up Voltage / Auto Restart Voltage |
120 – 140 VAC / 180 VAC |
|
|
Acceptable Input Voltage Range |
170 -280 VAC |
|
|
Maximum AC Input Current |
40 A |
|
|
BATTERY MODE OUTPUT (AC)
|
||
|
Nominal Output Voltage |
208/220/230/240 VAC |
|
|
Maximum Conversion Efficiency (DC/AC) |
93% |
|
|
BATTERY & CHARGER
|
||
|
Nominal DC Voltage |
48 VDC |
|
|
Maximum Charging Current |
100 A |
|
|
PHYSICAL
|
||
|
Dimension, DXWXH (mm) |
214 x 621 x 500 |
|
|
Net Weight (kgs) |
25 |
|
|
BATTERY MODULE
|
ESS II-4810
|
|
|
CAPACITY
|
5120Wh |
|
|
PARAMETERS
|
||
|
Norminal Voltage |
51.2VDC |
|
|
Full Charge Voltage(FC) |
56V |
|
|
Full Discharge Voltage(FD) |
42V |
|
|
Typical Capacity |
100 Ah |
|
|
Max Continuous Discharging Current |
150A |
|
|
Max Discharging Current |
192A at 1min |
|
|
Protecttion |
BMS, breaker |
|
|
Charge Voltage |
56V |
|
|
Charge Current |
20A (0.2C) |
|
|
Maximum Charge current |
50A (0.5C) |
|
|
Standard Charge method |
0.2C DC (Constant current) charge to FC, |
|
|
Inner Resistance |
≤20m ohm |
|
|
PHYSICAL
|
||
|
Dimension, DXWXH (mm) |
214 x 621 x 550 |
|
|
Net Weight (kgs) |
55 |
|
|
*These figures may vary depending on different AC voltage and contry regulation. |
||
|
Product specifications are subject to change without further notice |
||
