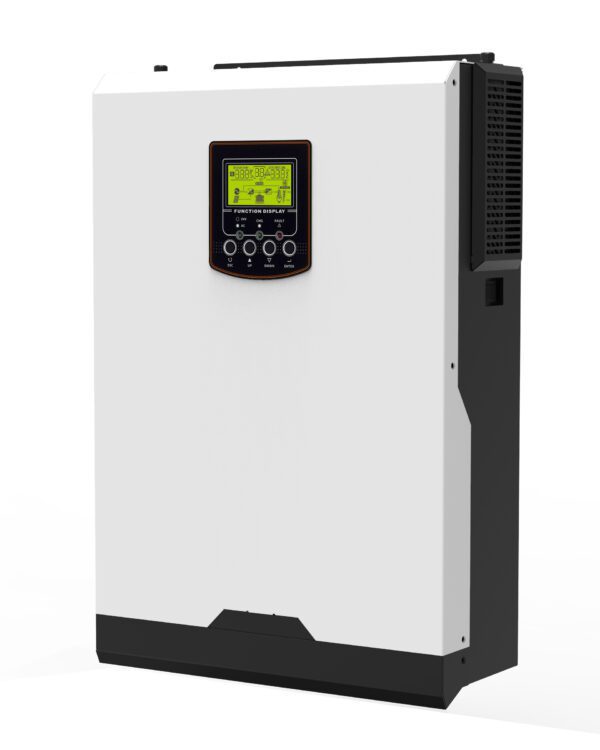

Voltronic Axpert VM II Premium 5000-48 Off-Grid Island Solar Inverter 5000 Watt 48 Volts
€482,90
| Primo VM-II Technical Characteristics | ||||
| Template | First VM-II 3000-24 | First VM-II 5000-48 | ||
| Potenza | 3000VA / 3000W | 5000VA / 5000W | ||
| AC Input (Alternating Current) | ||||
| Voltage | 230 VAC | |||
| Selectable Range | 170-280 VAC (For Personal Computers) | |||
| 90-280 VAC (For Home Appliances) | ||||
| Frequency | 50 Hz / 60 Hz (Auto sensing) | |||
| AC output (alternating current) | ||||
| AC voltage (Solar / Battery mode) | 230VAC ± 5% | |||
| Peak Power | 6000VA | 10000VA | ||
| Efficiency (Peak) | 90% ~ 93% | |||
| Mode Change Time | 15 ms (For Personal Computers) 20 ms (For Appliances) |
|||
| Wave type | Pure Wave | |||
| Battery | ||||
| Battery voltage | 24 VDC | 48 VDC | ||
| Maintenance Charge Voltage | 27 VDC | 54 VDC | ||
| Portestion voltage | 31 VDC | 63 VDC | ||
| Solar and battery charger parameters | ||||
| Solar Charger Type | MPPT | |||
| Maximum Power Panels | 4000W | 4000W | ||
| MPPT Operation Voltage | 120 ~ 450 VDC | 120 ~ 450 VDC | ||
| Maximum VOC voltage | 500 VDC | |||
| Solar Charge Current Max | 80A | |||
| Charging Current AC Max | 80A | |||
| Size and Weight | ||||
| Depth X Height x Width (mm) | 100 x 300 x 440 | 100 x 300 x 440 | ||
| Net weight | 9,0 | 10 | ||
| Communication Interfaces | USB / RS232 | |||
| Operation Environment | ||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
| Operating temperature | -10 ℃ to 50 ℃ | |||
| Storage Temperature | -15 ℃ to 60 ℃ | |||
| * The Technical Characteristics can be changed without notice | ||||
|
Barba Srl | |||
| Via Locchi, 3f – 47122 Forlì | Via Locchi, 3f – 47122 Forlì | |||
| Tel. 0543-1995799 | Tel. 0543-1995799 | |||
| email: solarpower24@solarpower24.it website: www.solarpower24.it |
||||
- Description
- Additional information
- Download Documents
- Reviews (0)
Description
INVERTER Voltronic AXPERT VM II Premium 5000-48
• Alternating Current Power 5kw
• 48V battery pack support
• Installable power 5kw panels
• Pure sine wave solar inverter
• High power selectable charging current
– Wide DC input range (up to 500 volts VOC)
• AC / Solar input priority configurable via LCD setting
– BMS Rs485 communication port (compatible with VOLTRONIC, SP24,PYLONTECH, YILINK batteries)
For the Complete Technical Characteristics See the detail below
TECHNICAL SPECIFICATIONS
Table 1 Line Mode Specifications
|
INVERTER MODEL |
1.2KVA |
|
3KVA |
5KVA |
|
Input voltage waveform |
Sinusoidal (AC mains or generator) |
|||
|
Rated input voltage |
230Vac |
|||
|
Low voltage loss |
170Vac ± 7V (UPS); 90Vac ± 7V (equipment) |
|||
|
Low Return Voltage Drop |
180Vac ± 7V (UPS); 100Vac ± 7V (Equipment) |
|||
|
High Voltage Drop |
280Vac ± 7V |
|||
|
High Return Voltage Drop |
270Vac ± 7V |
|||
|
Max. AC input voltage |
300Vac |
|||
|
Rated input frequency |
50Hz / 60Hz (Auto Detect) |
|||
|
Low Frequency Drop |
40 ± 1 Hz |
|||
|
Fall Return Frequency Low |
42 ± 1 Hz |
|||
|
High Frequency Fall |
65 ± 1 Hz |
|||
|
High Return Voltage Drop |
63 ± 1 Hz |
|||
|
Short circuit protection at the output |
Differential |
|||
|
Efficiency (Line Mode) |
>95% (Rated load R, battery fully charged) |
|||
|
Transfer duration |
10ms typical (UPS); 20ms typical (equipment); |
|||
|
Reduction of output power If the AC input voltage drops to 170V, the output power will be reduced. |
||||
Table 2 Inverter Mode Specifications
|
INVERTER MODEL |
1.2KVA |
|
3KVA |
5KVA |
|
|
Rated output power |
1.2KVA/ 1.2KW |
2.5KVA/ 2.5KW |
3KVA / 3KW |
5KVA / 5KW |
|
|
Output voltage waveform |
Pure sine wave |
||||
|
Output voltage regulation |
230Vac ± 5% |
||||
|
Output frequency |
50 Hz |
||||
|
Peak efficiency |
93% |
||||
|
Overload protection |
5s @ ≥130% load; 10s @ 105 %~130% load |
||||
|
Overload capacity |
2 * Rated power for 5 seconds |
||||
|
Nominal DC input voltage |
12Vdc |
24Vdc |
48Vdc |
||
|
Cold start voltage |
11.5Vdc |
23.0Vdc |
46.0Vdc |
||
|
Low DC alarm voltage |
|
|
|
||
|
@ load< 50% |
11.5Vdc |
23.0Vdc |
46.0Vdc |
||
|
@ load ≥ 50% |
11.0Vdc |
22.0Vdc |
44.0Vdc |
||
|
Low DC Alarm Return Voltage |
|
|
|
||
|
@ load< 50% |
11.7Vdc |
23.5Vdc |
47.0Vdc |
||
|
@ load ≥ 50% |
11.5Vdc |
23.0Vdc |
46.0Vdc |
||
|
Low Cutoff Voltage DC |
|
|
|
||
|
@ load< 50% |
10.7Vdc |
21.5Vdc |
43.0Vdc |
||
|
@ load ≥ 50% |
10.5Vdc |
21.0Vdc |
42.0Vdc |
||
|
DC High Recovery Voltage |
15Vdc |
31Vdc |
62Vdc |
||
|
DC High Cutoff Voltage |
16Vdc |
32Vdc |
63Vdc |
||
|
Consumption without load |
<35W |
<50W |
|||
Table 3 Charge Mode Specifications
|
AC Grid Load Mode |
|||||||
|
INVERTER MODEL |
1.2KVA |
|
3KVA |
5KVA |
|||
|
Charging algorithm |
3-Step |
||||||
|
Charging current AC (max.) |
80Amp (@VI/P=230Vac) |
100Amp |
|||||
|
Bulk charge voltage |
Flooded battery |
14,6 |
29,2 |
58,4 |
|||
|
AGM / Gel battery |
14,1 |
28,2 |
56,4 |
||||
|
Float voltage |
13.5Vdc |
27Vdc |
54Vdc |
||||
|
Charge curve |
|
||||||
|
MPPT Solar Charge Mode |
|||||||
|
INVERTER MODEL |
1.2KVA |
|
3KVA |
5KVA |
|||
|
Max. PV array power |
2000W |
3000W |
5000W |
||||
|
Nominal PV voltage |
240Vdc |
320Vdc |
|||||
|
Starting voltage |
70Vdc +/- 10Vdc |
150Vdc +/- 10Vdc |
|||||
|
PV array MPPT voltage range |
60~300Vdc |
60~400Vdc |
120 ~ 450Vdc |
||||
|
Max. PV array open circuit voltage |
350Vdc |
450Vdc |
500Vdc |
||||
|
Max. Input current |
13Amp |
18Amp |
|||||
|
Maximum charge current (AC charger plus solar charger) |
100Amp |
||||||
Table 4 General Specifications
|
INVERTER MODEL |
1.2KVA |
|
3KVA |
5KVA |
|
Safety certification |
THERE IS |
|||
|
Operating temperature range |
– 10 ° C + 50 ° C |
|||
|
Storage temperature |
-15 ° C ~ 60 ° C |
|||
|
Humidity |
5 – 95% relative humidity (non-condensing) |
|||
|
Dimensions (P * W * H), mm |
90 x 288 x 357 |
110 x 288 x 390 |
120 x 300 x 440 |
|
|
Net weight, kg |
6,5 |
7,0 |
7,2 |
10 |
.
The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, please visit the Inverter for EU countries section of the website
THE FORM CAN BE FOUND HERE
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
THE PRODUCT CANNOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED
TO EMAIL ADDRESS moduloiva@solarpower24.it or by fax to 0545030125
Download Documents
Manuale SP24_Axpert_VM_II_Premium_1-5Kw_20230318_ITA
Manual SP24_Axpert_VM_II_Premium_1-5Kw_20230318_EN
