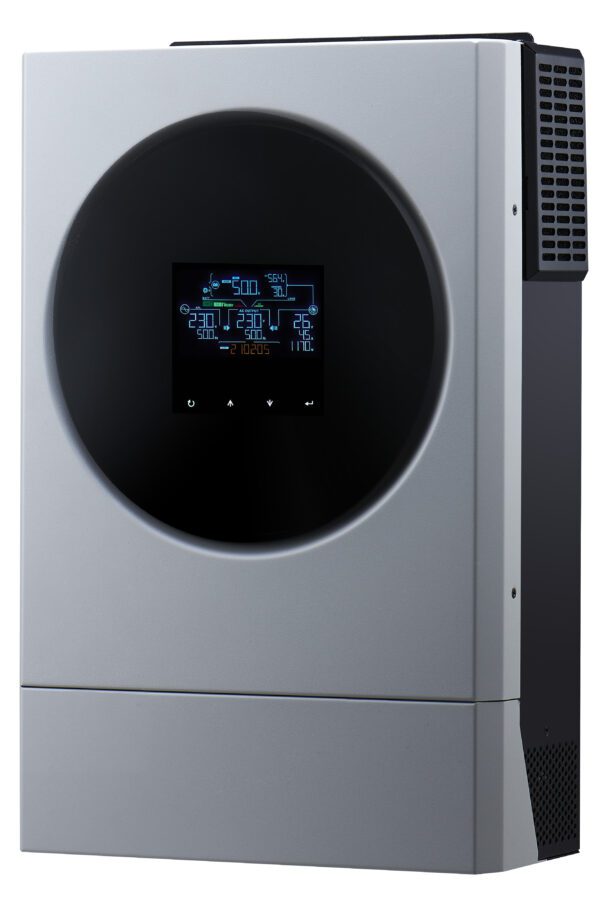

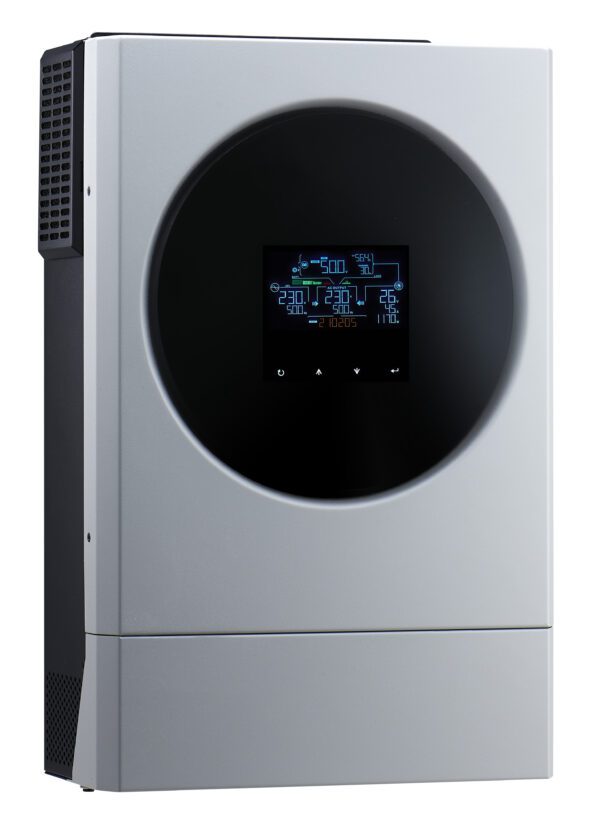

Voltronic Axpert MKS IV 5.6Kw 48 Volt 5600-48 Off-Grid Island Solar Inverter
€877,80 (Tax Excl. .€798,00)
INVERTER FIRST MKS IV 5600-48
• Alternating Current Power 3.6-5.6kw
• Installable power 4-6kw panels
• 48V battery pack support
• Integrated Wi-Fi for mobile monitoring (Android app available)
• Communication port reserved for BMS (RS485, CAN-BUS or RS232) support for Pylontech US2000 / US3000
• Supply the load from the grid or the PV, even if the battery is not available
• High power selectable charging current
• Selectable input voltage range for household appliances and personal computers
• Compatible with mains supply or generator input
• Parallel operation with up to 9 units ((optional parallel kit to be purchased separately)
- Description
- Additional information
Description
Voltronic Axpert MKS IV (PF1) 5.6Kw 48 Volt 5600-48 Off-Grid Island Solar Inverter
INVERTER FIRST MKS IV 5600-48
• Alternating Current Power 3.6-5.6kw
• Installable power 4-6kw panels
• 48V battery pack support
• Integrated Wi-Fi for mobile monitoring (Android app available)
• Communication port reserved for BMS (RS485, CAN-BUS or RS232) support for Pylontech US2000 / US3000
• Supply the load from the grid or the PV, even if the battery is not available
• High power selectable charging current
• Selectable input voltage range for household appliances and personal computers
• Compatible with mains supply or generator input
• Parallel operation with up to 9 units (optional parallel kit to be purchased separately)
TECHNICAL SPECIFICATIONS
Table 1 Line Mode Specifications
|
INVERTER MODEL
|
3.6KW
|
5.6KW
|
|
Input voltage waveform
|
Sinusoidal (AC mains or generator) |
|
|
Rated input voltage
|
230Vac |
|
|
Low voltage loss
|
170Vac ± 7V (UPS) 90Vac ± 7V (equipment) |
|
|
Low Return Voltage Drop
|
180Vac ± 7V (UPS); 100Vac ± 7V (Equipment) |
|
|
High Voltage Drop
|
280Vac ± 7V |
|
|
High Return Voltage Drop
|
270Vac ± 7V |
|
|
Max. AC input voltage
|
300Vac |
|
|
Rated input frequency
|
50Hz / 60Hz (Auto Detect) |
|
|
Low Frequency Drop
|
40 ± 1Hz |
|
|
Low Return Voltage Drop
|
42 ± 1Hz |
|
|
High Frequency Drop
|
65 ± 1Hz
|
|
|
High Return Voltage Drop
|
63 ± 1Hz |
|
|
Short circuit protection at the output
|
Line Mode: Differential Battery mode: Electronic Circuits |
|
|
Efficiency (Line Mode)
|
>95% (Rated load R, battery fully charged) |
|
|
Transfer duration
|
10ms typical (UPS); 20ms typical (appliances); |
|
|
Reduction of output power
If the AC input voltage drops to 95V or 170V depending on the models, the output power will be reduced. |
|
|
Table 2 Inverter Mode Specifications
|
INVERTER MODEL
|
3.6KW
|
5.6KW
|
|
Rated output power
|
3.6KVA / 3.6KW |
5.6KVA / 5.6KW |
|
Output voltage waveform
|
Pure sine wave |
|
|
Output voltage regulation
|
230Vac ± 5% |
|
|
Output frequency
|
60Hz or 50Hz |
|
|
Peak efficiency
|
90% |
|
|
Overload protection
|
5s @ ≥150% load; 10s @ 110 %~150% load |
|
|
Overload capacity
|
2 * Rated power for 5 seconds |
|
|
Nominal DC input voltage
|
48Vdc |
|
|
Cold start voltage
|
46.0Vdc |
|
|
Low DC alarm voltage
|
|
|
|
@ load< 20% |
44.0Vdc |
|
|
@ 20% ≤ load< 50% |
42.8Vdc |
|
|
@ load ≥ 50% |
40.4Vdc |
|
|
Low DC Alarm Return Voltage
|
|
|
|
@ load< 20% |
46.0Vdc |
|
|
@ 20% ≤ load< 50% |
44.8Vdc |
|
|
@ load ≥ 50% |
42.4Vdc |
|
|
Low DC cutoff voltage
|
|
|
|
@ load< 20% |
42.0Vdc |
|
|
@ 20% ≤ load< 50% |
40.8Vdc |
|
|
@ load ≥ 50% |
38.4Vdc |
|
|
High DC Recovery Voltage
|
64Vdc |
|
|
High DC cutoff voltage
|
66Vdc |
|
Table 3 Charge Mode Specifications
|
AC Grid Load Mode |
|||||
|
INVERTER MODEL
|
3.6KW
|
5.6KW
|
|||
|
Charging current (UPS)
@ Nominal input voltage
|
100A. |
120A |
|||
|
Bulk Charge Voltage
|
Flooded battery
|
58,4 |
|||
|
AGM / Gel battery
|
56,4 |
||||
|
Float voltage
|
54Vdc |
||||
|
Overload protection
|
66Vdc |
||||
|
Charging algorithm
|
3 step |
||||
|
Charge curve
|
|
||||
|
Solar charge mode (MPPT type) |
|||||
|
INVERTER MODEL
|
3.6KW
|
5.6KW
|
|||
|
Nominal power
|
5000W |
6000W |
|||
|
Max. Charging current
|
100A. |
120A |
|||
|
Max. PV array open circuit voltage
|
500Vdc |
450Vdc |
|||
|
PV array MPPT voltage range
|
120Vdc ~ 430Vdc |
||||
|
Max. Input current
|
18A |
27A |
|||
|
INVERTER MODEL
|
3.6KW
|
5.6KW
|
|
Safety Certification
|
THERE IS |
|
|
Operating temperature range
|
– 10 ° C + 50 ° C |
|
|
Storage temperature
|
-15 ° C ~ 60 ° C |
|
|
Humidity
|
5 – 95% relative humidity (non-condensing) |
|
|
Dimensions (P * W * H), mm
|
140 x 295 x 468 |
|
|
Net weight, kg
|
11 |
12 |
The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy Attention the sale price of these products is with 10% VAT in case of purchase you will have to fill in a declaration that the products will be used for a renewable energy system
.
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
.
.
Additional information
| Weight | 11 kg |
|---|---|
| EAN | 8050030420295 |
| Cod. Art. | IN-VL-AMKS456K6K-48 |
