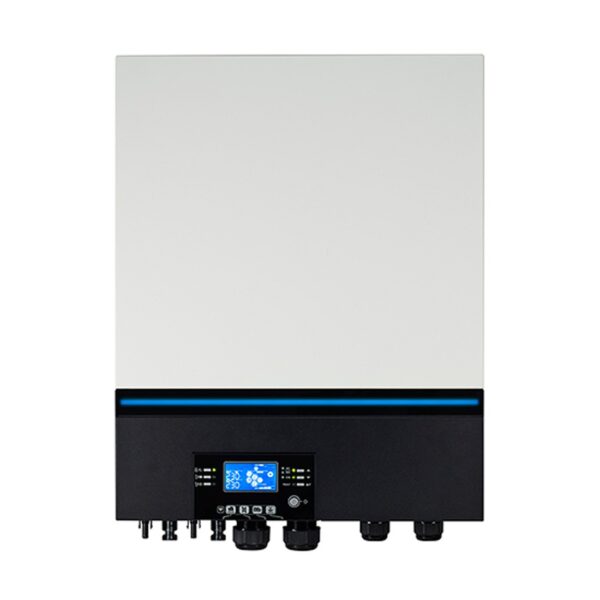

MODEL

8KW

Input voltage waveform

Sinusoidal (AC mains or generator)

Rated input voltage

230Vac

Low voltage loss

170Vac ± 7V (UPS)

90Vac ± 7V (equipment)

Low Return Voltage Drop

180Vac ± 7V (UPS);

100Vac ± 7V (Equipment)

High Voltage Drop

280Vac ± 7V

High Return Voltage Drop

270Vac ± 7V

Max. AC input voltage

300Vac

Current Max. AC input

60A

Max. output current for second port

40 A

Rated input frequency

50Hz / 60Hz (Auto Detect)

Low Frequency Drop

40 ± 1Hz

Low Return Voltage Drop

42 ± 1Hz

High Frequency Drop

65 ± 1Hz

High Return Voltage Drop

63 ± 1Hz

Short circuit protection at the output

Line Mode: RCD (70A)

Battery mode: Electronic Circuits

Efficiency (Line Mode)

>95% (Rated load R, battery fully charged)

Transfer duration

10ms typical (UPS);

20ms typical (equipment);

Output power reduction:

If the AC input voltage drops below 170V, the output power will be reduced.

MODEL

8KW

Rated output power

8000W

Output voltage waveform

Pure sine wave

Output voltage regulation

230Vac ± 5%

Output frequency

60Hz or 50Hz

Peak efficiency

93%

Overload protection

100ms @ ≥205% load; 5s @ ≥150% load; 10s @ 110 %~150% load

Overload capacity

2 * Rated power for 5 seconds

Optional 12V DC output

DC output

12 VDC ± 7%, 100W

DC cutoff voltage High

66Vdc

Low DC cutoff voltage

44Vdc

Rated DC input voltage

48Vdc

Cold start voltage

46.0Vdc

Alarm voltage DC Low

@ load< 20%

46.0Vdc

@ 20% ≤ load< 50%

42.8Vdc

@ load ≥ 50%

40.4Vdc

Alarm Return Voltage DC Low

@ load< 20%

48.0Vdc

@ 20% ≤ load< 50%

44.8Vdc

@ load ≥ 50%

42.4Vdc

Low DC cutoff voltage

@ load< 20%

44.0Vdc

@ 20% ≤ load< 50%

40.8Vdc

@ load ≥ 50%

38.4Vdc

High DC Recovery Voltage

64Vdc

DC cutoff voltage High

66Vdc

DC voltage accuracy

+/- 0.3V @ no load

THDV

<5% for linear load,< 10% for non-linear load @ rated voltage

DC offset

≦ 100mV

Power limitation

If the battery voltage is less than 50Vdc, the output power will be reduced. If the connected load is greater than this reduced power, the output AC voltage will decrease until the output power is reduced to this reduced power. The minimum AC output voltage is the output voltage setting-10V.

AC Grid Load Mode

MODEL

8KW

Charging current (UPS)

@ Nominal input voltage

120A

Bulk Charge Voltage

Lead-acid battery

58.4Vdc

AGM / Gel battery

56.4Vdc

Charging float voltage

54Vdc

Overload protection

66Vdc

Charging algorithm

3 step

Charge curve

Solar entrance

MODEL

8KW

Nominal power

8000W

Max. PV array open circuit voltage

500Vdc

PV array MPPT voltage range

90Vdc ~ 450Vdc

Max. Input current

27A x 2 (MAX 40A)

Max. Charging current

120A

Starting voltage

80V +/- 5Vdc

Power limitation
