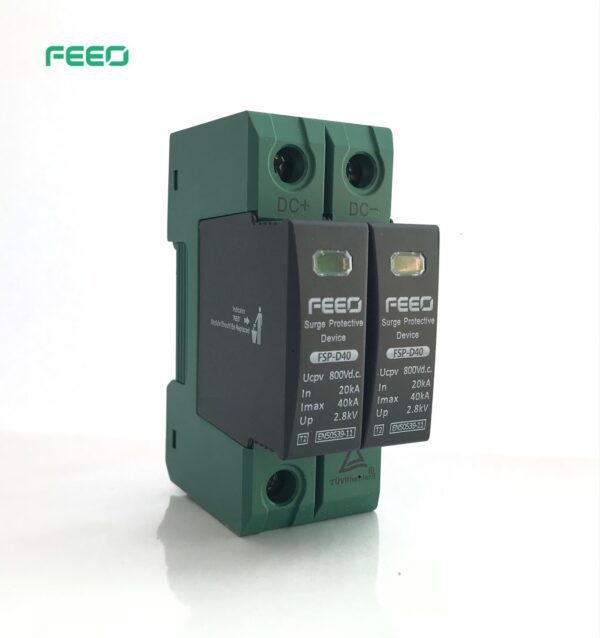

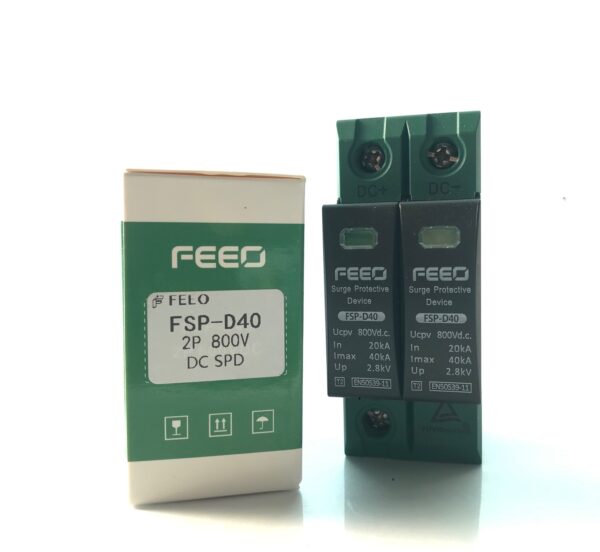

FEEO FSP-D40 800V 2-Pole Surge Arrester
€34,10 (Tax Excl. .€31,00)
- Description
- Additional information
Description
FSP-D40 2P DC SPD Surge protection device, protects against lightning surge in solar system (photovoltaic power system).
These units should be installed in parallel on the dc networks to be protected and provide protection in common and different ways. Its installation location is recommended on both ends of the DC power line (solar panel side and inverter/converter side), especially if the line path is external and long.
High-energy MOVs equipped with specific thermal disconnect switches and associated fault indicators.
| FSP-D40 Surge protector | FSP-D40 | ||
| PVDC – specific ( IEC61643-I /EN61643 -11 ) | |||
| Pole | 2P | 3P | 3P |
| Electrical parameter | |||
| Classified test | II | II | II |
| Uoc max (VDC ) | 800 | 1000 | 1500 |
| Uc ( VDC ) | 800 | 1000 | 1500 |
| ln (8 /20 )us ( kA ) | 20 | 20 | 20 |
| lma x (8 /20 )us ( kA ) | 40 | 40 | 40 |
| Up ( kV ) | 2.8 | 3.8 | 5.3 |
Additional information
| Weight | 0,5 kg |
|---|
