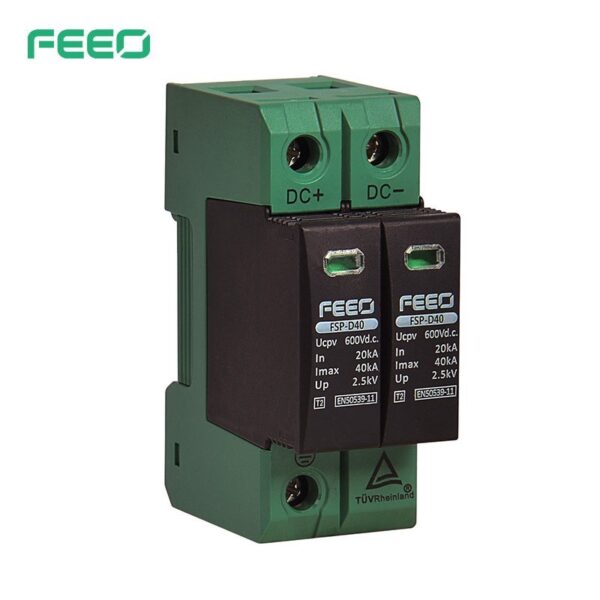

Overvoltage Discharger FEEO FSP-D40 600V 2 Poles
€34,10 (Tax Excl. .€31,00)
- Description
- Additional information
Description
FSP-D40 2P DC SPD Surge protection device, protects against lightning surge in solar system (photovoltaic power system).
These units should be installed in parallel on the dc networks to be protected and provide protection in common and different ways. Its installation location is recommended on both ends of the DC power line (solar panel side and inverter/converter side), especially if the line path is external and long.
High-energy MOVs equipped with specific thermal disconnect switches and associated fault indicators.
| FSP-D40 Overvoltage Protection | FSP-D40 | ||
| PVDC – specific (IEC61643-I /EN61643-11) | |||
| Polo | 2P | 3P | 3P |
| Electrical parameter | |||
| Classified evidence | II | II | II |
| Uoc max (Vcc) | 600 | 1000 | 1500 |
| Uc (VDC) | 600 | 1000 | 1500 |
| ln (8 /20 )us ( kA ) | 20 | 20 | 20 |
| lma x (8 /20 )us ( kA ) | 40 | 40 | 40 |
| Up ( kV ) | 2.0 | 3.8 | 5.3 |
Additional information
| Weight | 0,05 kg |
|---|
