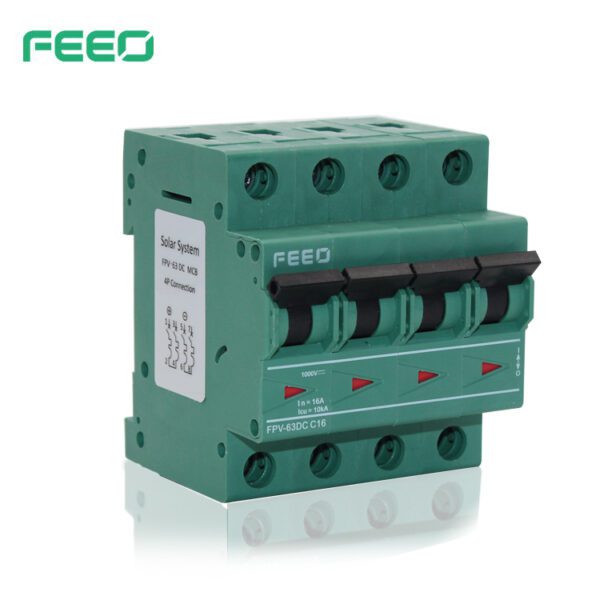

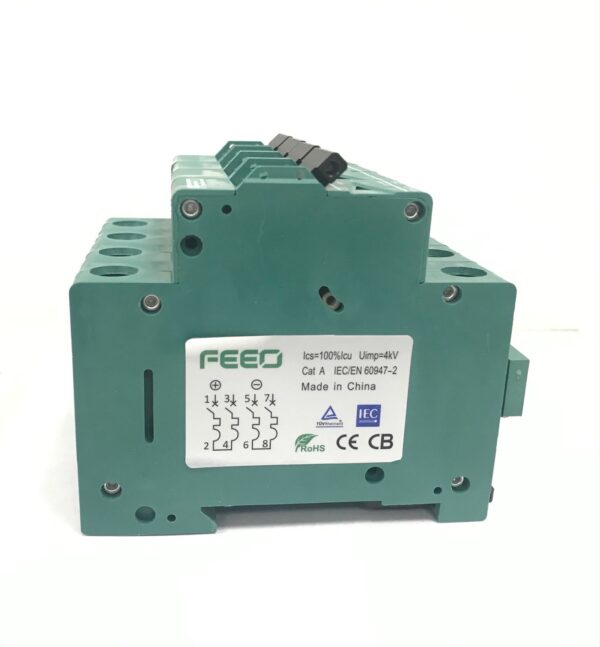

DC Thermal Magnet Direct Current FEEO FPV-63 4 Poles 16A Up to 1000VDC
€36,08 (Tax Excl. .€32,80)
- Description
- Additional information
Description
DC Thermal Magnet DC FEEO FPV 63 2P IN AND 2P OUT (4 Poles) 16A 1000VDC
THE PRODUCT CAN BE USED AS:
A) 2 POLES IN AND 2 POLES OUT 16A 1000VDC
B) 4 POLES IN AND 4 POLES OUT 16A 550 VDC
Product Description.
The 4P solar DC MCB applies to the rated current of 63 A or less. It is mainly used for overload and short circuit protection in DC distribution system equipment and electrical equipment. It can be widely used in the electrical, postal, traffic, mining enterprises and various kinds of fields.
Product Features.
Current-limited operation under fault conditions
The lever can be padlocked in the “ON” or “OFF” position.
Wide range of multifunctional accessories
Current-limited operation under fault conditions
High torque terminals up to 4.5 Nm
|
FPV-63 series circuit breaker |
FPV-63 |
|
|
Rated current of frame grade (A) |
63 |
|
|
Polo |
1P, 2P, 3P, 4P |
|
|
Rated Operating Voltage (VCC) |
DC12V-DC1200V |
|
|
Rated current In (A) |
1-63A |
|
|
Rated insulation voltage Ui (VCC) |
1200 V DC |
|
|
Rated impact voltage Uimp (KV) |
4 |
|
|
Maximum interrupting power Icu (KA) |
6 |
|
|
Ic execution interruption capability (%Icu) |
75% |
|
|
Type of curve |
C. |
|
|
Type of trip |
Magnetothermal |
|
|
Mechanic |
Actual average value |
20000 |
|
Standard |
8500 |
|
|
Electric |
Actual average value |
2500 |
|
Standard |
1500 |
|
Additional information
| Weight | 0,50 kg |
|---|
