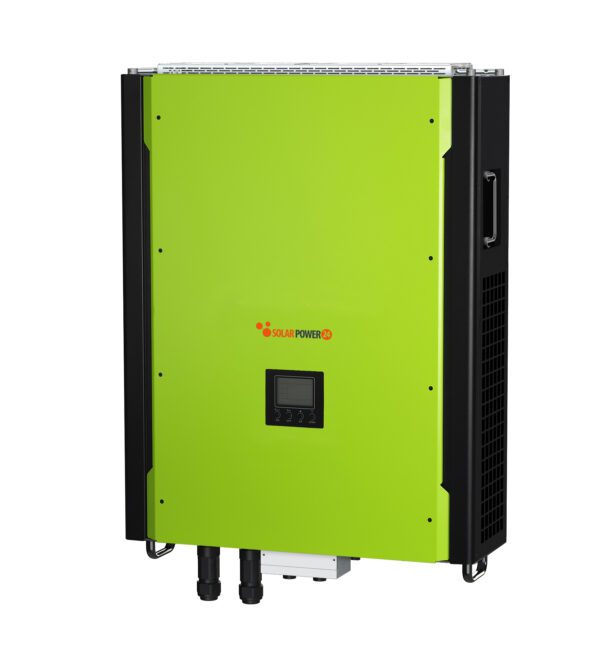

SP24 Only Infinisolar HY 3P 15KW Hybrid Inverter
€2.702,70
| TEMPLATE | ONLY HY 3P 15KW |
| Phases | Three-phase 3 in / 3 out |
| Power Installable Panels | 22500W |
| AC Output Power | 15000W |
| Maximum Battery Charger Power | 14400W |
| ON-GRID MODE | |
| SOLAR FEATURES | |
| Nominal Voltage / Maximum Voc | 720 VDC / 900 VDC |
| Start-Up Voltage / Production Voltage | 320 VDC / 350 VDC |
| MPPT Operating Range | 400 VDC ~ 800 VDC |
| Number of MPPTs / Maximum Power | 2/1: A x 37.65A – 1: B x 18.6A |
| AC OUT | |
| Nominal Voltage AC Output | 230 VAC (PN) / 400 VAC (PP) |
| AC Voltage Range | 184 – 265 VAC * per phase |
| Nominal Current Output AC | 21.7A per phase |
| Power Factor | > 99% |
| EFFICIENCY | |
| Maximum DC / AC Conversion Efficiency | 96% |
| European efficiency @ Vnominal | 95% |
| OFF-GRID MODE | |
| SOLAR FEATURES | |
| Voc Massimo | 900 VDC |
| MPPT Operating Range | 400 VDC ~ 800 VDC |
| Number of MPPTs / Maximum Power | 2/2 x 18.6A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Voltage AC Output | 230 VAC (PN) / 400 VAC (PP) |
| Wave type | Pure Sine Wave |
| Maximum DC / AC Conversion Efficiency | 91% |
| HYBRID MODE (HYBRID) | |
| SOLAR FEATURES | |
| Nominal Voltage / Maximum Voc | 720 VDC / 900 VDC |
| Start-Up Voltage / Production Voltage | 320 VDC / 350 VDC |
| MPPT Operating Range | 400 VDC ~ 800 VDC |
| Number of MPPTs / Maximum Power | 2/1: A x 37.65A – 1: B x 18.6A |
| AC OUT | |
| Nominal Voltage AC Output | 230 VAC (PN) / 400 VAC (PP) |
| AC Voltage Range | 184 – 265 VAC * per phase |
| Nominal Current Output AC | 21.7A per phase |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Voltage AC Output | 230 VAC (PN) / 400 VAC (PP) |
| Wave type | Pure Sine Wave |
| Maximum DC / AC Conversion Efficiency | 91% |
| BATTERIES AND CHARGER | |
| Nominal voltage | 48 VDC |
| Maximum Charging Current | Default 60A, 10A – 300A (Adjustable) |
| DIMENSIONS AND WEIGHT | |
| Dimension, PXLXH (mm) | 219 x 650 x 820 |
| Net Weight (kgs) | 62,0 |
| INTERFACES | |
| Communication port | RS-232 / USB and CAN |
| Smart Slot | Optional SNMP, Modbus, AS-400 |
| ENVIRONMENT | |
| Operating temperature | -10 to 55 degrees C. |
| Altitude | 0-1000 meters ** |
| ** the power decreases by 1% every 100m above 1000m | |
- Description
- Additional information
- Reviews (0)
Description
Main Technical Features:
- Pure sine wave inverter
- Self-consumption
- Programmable Use Priority for Solar, Battery or Network
- Wide selectable charging currents for compatibility with different battery types
- Various Modes of Use for a wide flexibility: On-Grid, Off-Grid, Hybrid
- Internal Clock for various on / off options
- Multiple communication ports for USB, RS-232, Modbus and SNMP
- Real-time Monitoring and Control Software
- Possibility of Parallel Connection up to 6 units
- Are you a reseller interested in buying, click here
Attention the published price includes 10% VAT for private users who must fill out a declaration that the product will be used for a renewable energy system
