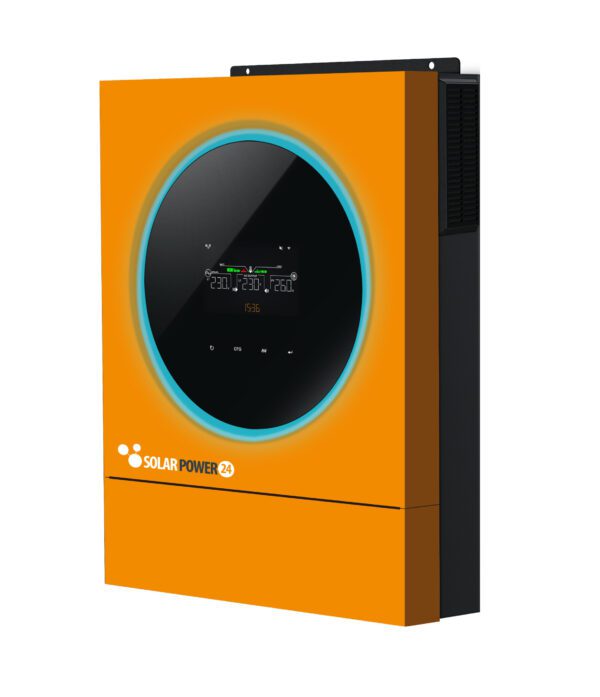

SP24 Primo VM IV (PF1) 5.6Kw 48 Volt 5600-48 Off-Grid Solar Inverter

0 out of 5

617,00 (Tax Excl. .560,91)

INVERTER FIRST VM IV 5600-48

• Alternating Current Power 5.6kw
• Installable power 6kw panels
• 48V battery pack support
• Supports USB On-the-Go function
• Communication port reserved for BMS (RS485, CAN-BUS or RS232) support for Pylontech US2000
• Replaceable fan design for ease of maintenance
• Supply the load from the grid or the PV, even if the battery is not available
• Use timer and priority of AC / PV configurable outputs
• High power selectable charging current
• Selectable input voltage range for household appliances and personal computers
• Compatible with mains supply or generator input
• Automatic restart while AC is recovering
• Cold start function

Availability: Out of stock Categories: , ,

Description

SP24 Primo VM IV (PF1) 5.6Kw 48 Volt 5600-48 Off-Grid Solar Inverter

INVERTER FIRST VM IV 5600-48

• Alternating Current Power 5.6kw
• Installable power 6kw panels
• 48V battery pack support
• Supports USB On-the-Go function
• Communication port reserved for BMS (RS485, CAN-BUS or RS232) support for Pylontech US2000
• Replaceable fan design for ease of maintenance
• Supply the load from the grid or the PV, even if the battery is not available
• Use timer and priority of AC / PV configurable outputs
• High power selectable charging current
• Selectable input voltage range for household appliances and personal computers
• Compatible with mains supply or generator input
• Automatic restart while AC is recovering
• Cold start function

For the Complete Technical Characteristics See the detail below

MODEL



3.6KW



5.6KW



Input voltage waveform



Sinusoidal (AC mains or generator)

Rated input voltage



230Vac

Low voltage loss



170Vac ± 7V (UPS);

90Vac ± 7V (equipment)

Low Return Voltage Drop



180Vac ± 7V (UPS);

100Vac ± 7V (Equipment)

High Voltage Drop



280Vac ± 7V

High Return Voltage Drop



270Vac ± 7V

Max. AC input voltage



300Vac

Rated input frequency



50Hz / 60Hz (Auto Detect)

Low Frequency Drop



40 ± 1Hz

Low Return Voltage Drop



42 ± 1Hz

High Frequency Drop



65 ± 1Hz



High Return Voltage Drop



63 ± 1Hz

Short circuit protection at the output



Differential switch

Efficiency (Line Mode)



>95% (Rated load R, battery fully charged)

Transfer duration



10ms typical (UPS);

20ms typical (appliances);

Reduction of output power



If the AC input voltage drops to 170V, the output power will be reduced.



MODEL



3.6KW



5.6KW



Rated output power



3.6KVA / 3.6KW

5.6KVA / 5.6KW

Output voltage waveform



Pure sine wave

Output voltage regulation



230Vac ± 5%

Output frequency



50Hz

Peak efficiency



93%

Overload protection



5s @ ≥130% load; 10s @ 105 %~130% load

Overload capacity



2 * Rated power for 5 seconds

Nominal DC input voltage



24Vdc

48Vdc

Cold start voltage



23.0Vdc

46.0Vdc

Low DC alarm voltage



@ load< 50%

23.0Vdc

46.0Vdc

@ load ≥ 50%

22.0Vdc

44.0Vdc

Low DC Alarm Return Voltage



@ load< 50%

23.5Vdc

47.0Vdc

@ load ≥ 50%

23.0Vdc

46.0Vdc

Low DC cutoff voltage



@ load< 50%

21.5Vdc

43.0Vdc

@ load ≥ 50%

21.0Vdc

42.0Vdc

High recovery DC voltage



32Vdc

62Vdc

High DC cutoff voltage



33Vdc

63Vdc

Consumption without load



<40W

<55W



AC Grid Load Mode

MODEL



3.6KW



5.6KW



Charging current (UPS)



@ Nominal input voltage



100Amp (@V I / P = 230Vac)

Bulk Charge Voltage



Flooded battery



29,2

58.4Vdc

AGM / Gel battery



28,2

56.4Vdc

Charging float voltage



27Vdc

54Vdc

Charging algorithm



3 step

Charge curve



Solar entrance

MODEL



3.6KW



5.6KW



Max. PV array power



4000W

6000W

Nominal PV voltage



240Vdc

360Vdc

Starting voltage



150Vdc +/- 10Vdc

PV array MPPT voltage range



120 ~ 450Vdc

Max. PV array open circuit voltage



500Vdc

Maximum charge current



(AC charger plus solar charger)



120Amp

MODEL

3.6KW

5.6KW

Operating temperature range

– 10 ° C + 50 ° C

Storage temperature

-15 ° C ~ 60 ° C

Humidity

5 – 95% relative humidity (non-condensing)

Dimensions (P * W * H), mm

119 x 313.6 x 422.8

Net weight, kg

10

12

The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy Attention the sale price of these products is with 10% VAT in case of purchase you will have to fill in a declaration that the products will be used for a renewable energy system

.

https://www.cercastock.it/repository/_barba_srl_dich_10.pdf

.

.

Additional information

Weight 11 kg
EAN

8050030420288
