Description

The kit consists of the following products

Description Products included in the kit	qta
Inverter SP24 Primo VM III 5kW 48 Volt (1 mppt of 5kW)	1
SP24 Lifepo4 50Ah 48 Volt battery	2
Battery / Inverter Connection Cable	1
Battery / Battery Connection Cable	1
BMS communication cable Batteries / inverters	1

. .

https://www.cercastock.it/repository/_barba_srl_dich_10.pdf

.

.

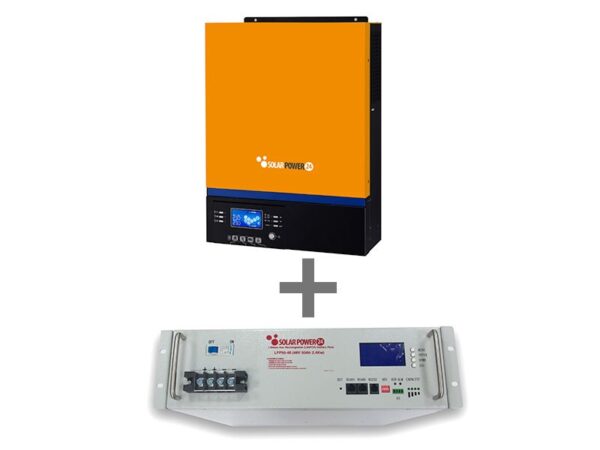

SOLARPOWER24 PRIMO VM III (PF1) 5000-48 5000 Watt 48 Volt + LIFEPO4 2.4KW LITHIUM BATTERY (50Ax48VOLT)

INVERTER PRIMO VM III 5000-48

• Alternating Current Power 5kw
• 48V battery pack support
• Installable power 5kw panels
• Removable LCD control module with multiple communications
• Integrated Bluetooth for mobile monitoring (Android app available)
• Supports USB On-the-Go function
• Communication port reserved for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Supply the load from the grid or the PV, even the battery is not available
• Use timer and priority of AC / PV configurable outputs
• High power selectable charging current
• Selectable input voltage range for household appliances and personal computers
• Compatible with mains supply or generator input
• Automatic restart while AC is recovering
• Cold start function
For the Complete Technical Characteristics See the detail below

Primo VM III Technical Characteristics
Template	First VM III-3000-24	First VM III 5000-48
Potenza	3000VA / 3000W	5000VA / 5000W
AC Input (Alternating Current)
Voltage	230 VAC
Selectable Range	170-280 VAC (For Personal Computers)
	90-280 VAC (For Home Appliances)
Frequency	50 Hz / 60 Hz (Auto sensing)
AC output (alternating current)
AC voltage (Solar / Battery mode)	230VAC ± 5%
Peak Power	6000VA	10000VA
Efficiency (Peak)	90% ~ 93%
Mode Change Time	15 ms (For Personal Computers) 20 ms (For Appliances)
Wave type	Pure Wave
Battery
Battery voltage	24 VDC	48 VDC
Maintenance Charge Voltage	27 VDC	54 VDC
Protection voltage	31 VDC	63 VDC
Solar and battery charger parameters
Solar Charger Type	MPPT
Maximum Power Panels	4000W
MPPT Operation Voltage	120 ~ 450 VDC
Maximum VOC voltage	500 VDC
Solar Charge Current Max	80A
Charging Current AC Max	60A
Size and Weight
Depth X Height x Width (mm)	115 x 400 x 300
Net weight	11	13
Communication Interfaces	Removable USB / RS232 / RS485 / Bluetooth / Dry-contact
Operation Environment
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating temperature	-10 ℃ to 50 ℃
Storage Temperature	-15 ℃ to 60 ℃
* The Technical Characteristics can be changed without notice

SOLARPOWER24 LITHIUM BATTERY KIT 50AH 48V 2.4KW FOR PHOTOVOLTAIC SYSTEMS

2U RACK MODULE, WEIGHT ABOUT 30KG, DIMENSIONS CM 44.2×38.2×13.2

TEMPLATE	BT-SP-LF48V50AH
ELECTRICAL FEATURES
Nominal Capacity (10 h)	50ah
Nominal voltage	48V
Power	2400W
Internal Resistance	<= 110mΩ
Charge / Discharge cycles with 100% DOD	>2000
Charge / Discharge cycles with 80% DOD	>5000
DIMENSIONS, WEIGHT, CONNECTOR
Width mm	442
Depth mm	385
Height mm	132
Approximate Weight Kg	30
CHARGE AND DISCHARGE VALUES
Charging voltage	54.0 + -0.2v
Maximum load	0.2C up to 54v
Charge Current	10A
Maximum Charge Current	50A
maximum discharge current	50A
OPERATING TEMPERATURES
Load	0-45 ° C
Download	-20-60 ° C
Storage	0-40 ° C
COMMUNICATION INTERFACES
Modbus
RS485 / RS232
Product specifications can be changed without notice

Additional information

Weight	39 kg
