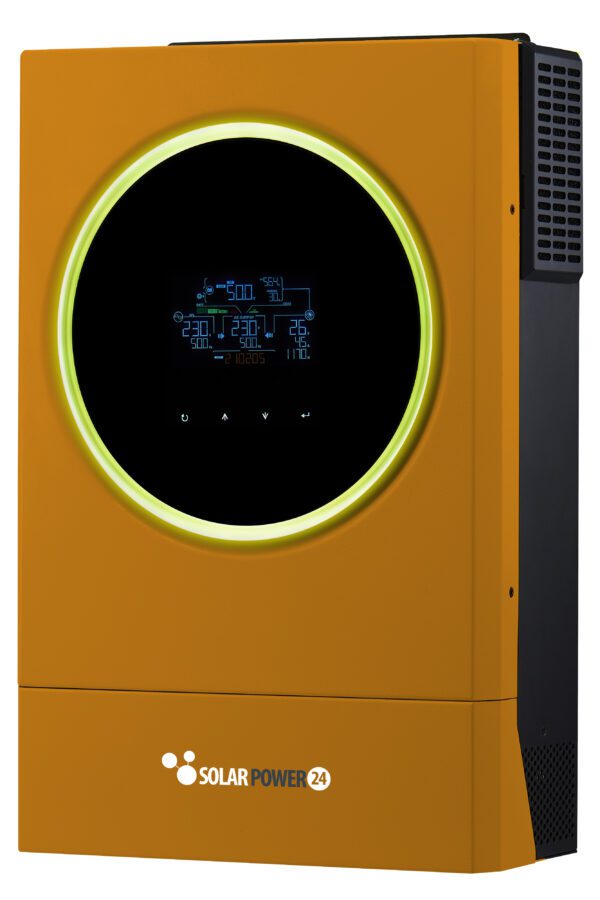

SP24 Infinisolar V IV TWIN 6KW-48V Hybrid Solar Inverter – Off-Grid Island
€722,70
INVERTER HY V II 5K-48 only
• Pure sine wave output
• Self-consumption
• Programmable power priority for PV, battery or grid
• User adjustable charging current and voltage
• Multiple programmable operating modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel operation up to 9 units
- Description
- Additional information
- Reviews (0)
Description
SP24 Infinisolar V IV TWIN 6KW-48V Hybrid Solar Inverter – Off-Grid Island
• Pure sine wave output
• Self-consumption
• Operation even without batteries with only AC input mains and panels
• Programmable power priority for PV, battery or grid
• User adjustable charging current and voltage
• Multiple programmable operating modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
– Parallel operation of up to 9 units (PARALLELING BOARD INCLUDED)
TECHNICAL SPECIFICATIONS
|
MODEL
|
6KW TWIN
|
|
Rated output power
|
6000W |
|
PV Input (DC)
|
|
|
Max. PV power |
6000W |
|
Max. PV array open circuit voltage |
500 VDC |
|
PV input voltage range |
120 VDC~500 VDC |
|
MPPT Range @ Operating Voltage |
120 VDC ~ 430 VDC |
|
Max. PV Array Short Circuit Current |
27A |
|
Number of MPP trackers |
1 |
|
GRID-TIE OPERATION
|
|
|
MAINS OUT (AC)
|
|
|
Nominal output voltage: |
220/230/240 VAC |
|
Grid supply voltage interval |
195.5 ~ 253 VAC @ India regulation 184 ~ 264.5 VAC @ Germany standard 184 ~ 264.5 VAC @ South America regulation |
|
Input network frequency range |
49 ~ 51Hz @ India standard 47.5 ~ 51.5Hz @ Germany standard 57 ~ 62Hz @ South America |
|
Rated output current |
26A |
|
Power factor range |
>0,99 |
|
Maximum conversion efficiency |
96% |
|
OFF-GRID, HYBRID OPERATION
|
|
|
NETWORK INPUT
|
|
|
Acceptable range of input voltage |
90 – 280 VAC or 170 – 280 VAC |
|
Frequency range |
(50Hz / 60Hz) (auto detect) |
|
Transfer duration |
< 10ms (for UPS) < 20ms (for home appliances) < 50ms (for parallel operation) |
|
AC transfer relay calibration |
40 A |
|
BATTERY MODE OUTPUT (AC) |
|
|
Rated output voltage |
220/230/240 VAC |
|
Output waveform |
Pure sine wave |
|
Efficiency (DC to AC) |
93% |
|
BATTERY AND CHARGER |
|
|
Nominal voltage DC |
48 VDC |
|
Maximum charging current (from mains) |
120A |
|
Maximum charging current (from PV) |
120A |
|
Maximum charge current |
120A |
|
GENERAL DATA |
|
|
Dimensions (L x W x H, mm) |
140 x 295 x 468 |
|
Net weight (kg) |
12 |
|
INTERFACE |
|
|
Parallelable |
Yup |
|
External safe (optional) |
Yup |
|
Communication |
RS232/Dry-Contact/WiFi |
|
ENVIRONMENT |
|
|
Humidity |
0 ~ 90% RH (non-condensing) |
|
Operating temperature |
– 10 ° C + 50 ° C |
Attention the sale price of these products is with 10% VAT in case of purchase you will have to fill in a declaration that the products will be used for a renewable energy system. In the case of foreign customers, the final sale price will be calculated automatically based on the VAT rate of the country of destination
.
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
.
AT EMAIL ADDRESS moduloiva@solarpower24.it or by fax at 0545030125
