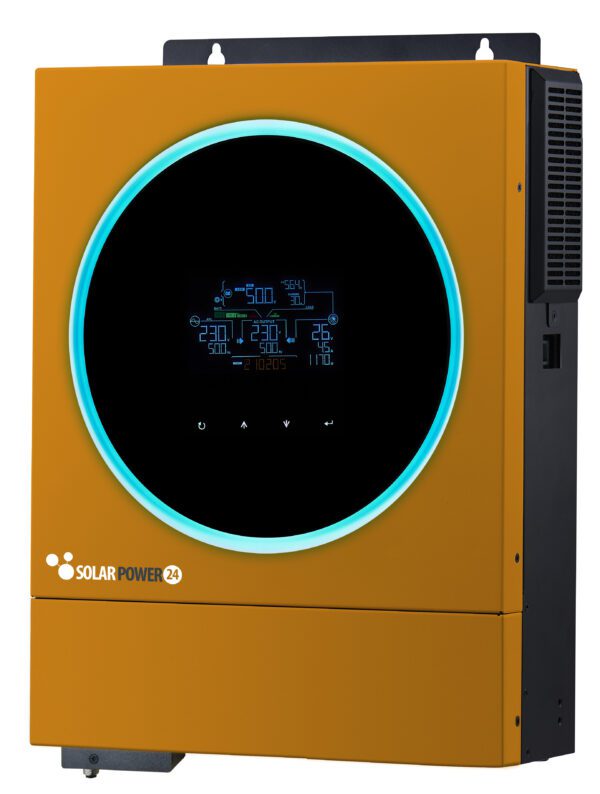

SP24 Axpert VM IV TWIN 6000watt 48V Off-Grid Inverter
€607,20
- Description
- Additional information
- Download Documents
Description
SP24 Axpert VM IV TWIN 6Kw 48V 6000-48 Inverter Solar Island Off Grid
– Alternating Current Power 6kw
– TWIN: 2 independent AC outputs that can be assigned different priorities
• Installable power 6kw panels
• 48V battery pack support
• Removable LCD control module with multiple communications
– Built-in Wi-Fi for mobile monitoring (Android/Iphone app available)
• Supports USB On-the-Go function
– Reserved communication port for BMS (RS485) support x Pylontech, Yilink,SP24, Voltronic LIO II-4810
• Replaceable fan design for ease of maintenance
• Supply the load from the grid or the PV, even if the battery is not available
• Use timer and priority of AC / PV configurable outputs
• High power selectable charging current
• Selectable input voltage range for household appliances and personal computers
• Compatible with mains supply or generator input
• Automatic restart while AC is recovering
• Cold start function
TECHNICAL SPECIFICATIONS
Table 1 Line Mode Specifications
|
MODEL |
4KW |
6KW |
|
Input voltage waveform |
Sinusoidal (AC mains or generator) |
|
|
Rated input voltage |
230Vac |
|
|
Low voltage loss |
170Vac ± 7V (UPS); 90Vac ± 7V (equipment) |
|
|
Low Return Voltage Drop |
180Vac ± 7V (UPS); 100Vac ± 7V (Equipment) |
|
|
High Voltage Drop |
280Vac ± 7V |
|
|
High Return Voltage Drop |
270Vac ± 7V |
|
|
Max. AC input voltage |
300Vac |
|
|
Rated input frequency |
50Hz / 60Hz (Auto Detect) |
|
|
Low Frequency Drop |
40 ± 1 Hz |
|
|
Low Return Voltage Drop |
42 ± 1 Hz |
|
|
High Frequency Drop |
65 ± 1 Hz |
|
|
High Return Voltage Drop |
63 ± 1 Hz |
|
|
Short circuit protection at the output |
Differential switch |
|
|
Efficiency (Line Mode) |
>95% (Rated load R, battery fully charged) |
|
|
Transfer duration |
10ms typical (UPS); 20ms typical (equipment); |
|
|
Reduction of output power If the AC input voltage drops to 170V, the output power will be reduced. |
||
Table 2 Inverter Mode Specifications
|
MODEL |
4KW |
6KW |
|
Rated output power |
4KVA/4KW |
6KVA/6KW |
|
Output voltage waveform |
Pure sine wave |
|
|
Output voltage regulation |
230Vac±10% |
|
|
Output frequency |
50 Hz |
|
|
Peak efficiency |
93% |
|
|
Overload protection |
5s@≥110% load; 10s@105~110% load |
|
|
Overload capacity |
2 * Rated power for 5 seconds |
|
|
Max. AC output current |
30Amp |
40Amp |
|
Nominal DC input voltage |
24Vdc |
48Vdc |
|
Cold start voltage |
23.0Vdc |
46.0Vdc |
|
Low DC alarm voltage |
|
|
|
@ load< 50% |
23.0Vdc |
46.0Vdc |
|
@ load ≥ 50% |
22.0Vdc |
44.0Vdc |
|
Low Voltage Return DC Alarm |
|
|
|
@ load< 50% |
23.5Vdc |
47.0Vdc |
|
@ load ≥ 50% |
23.0Vdc |
46.0Vdc |
|
Low Cutoff Voltage DC |
|
|
|
@ load< 50% |
21.5Vdc |
43.0Vdc |
|
@ load ≥ 50% |
21.0Vdc |
42.0Vdc |
|
High recovery DC voltage |
32Vdc |
62Vdc |
|
High DC cutoff voltage |
33Vdc |
63Vdc |
|
Consumption without load |
<40W |
<55W |
Table 3 Charge Mode Specifications
|
AC Grid Load Mode |
|||
|
MODEL |
4KW |
6KW |
|
|
Charging current (UPS) @ Nominal input voltage |
100Amp (@V I / P = 230Vac) |
||
|
Bulk Charge Voltage |
Flooded battery |
29,2 |
58.4Vdc |
|
AGM / Gel battery |
28,2 |
56.4Vdc |
|
|
Charging float voltage |
27Vdc |
54Vdc |
|
|
Charging algorithm |
3-Step |
||
|
Charge curve |
|
||
|
Solar entrance |
|||
|
MODEL |
4KW |
6KW |
|
|
Max. PV array power |
5000W |
6000W |
|
|
Max. PV Current |
27A |
||
|
Nominal PV voltage |
320Vdc |
360Vdc |
|
|
Starting voltage |
60Vdc +/- 10Vdc |
||
|
PV array MPPT voltage range |
60Vdc~450Vdc |
||
|
Max. PV array open circuit voltage |
500Vdc |
||
|
Maximum charge current (AC charger plus solar charger) |
120Amp |
||
Table 4 General Specifications
|
MODEL |
4KW |
6KW |
|
Operating temperature range |
– 10 ° C + 50 ° C |
|
|
Storage temperature |
-15 ° C ~ 60 ° C |
|
|
Humidity |
5 – 95% relative humidity (non-condensing) |
|
|
Dimensions (P * W * H), mm |
119 x 313.6 x 457.5 |
|
|
Net weight, kg |
10 |
12 |
.
The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, the site will recalculate according to the vat rate of the destination country
THE FORM YOU CAN FIND HERE
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
THE PRODUCT CANNOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED
AT EMAIL ADDRESS moduloiva@solarpower24.it or by fax at 0545030125
Download Documents
Manual SP24_Axpert_VM_IV_TWIN_ITA
Manuals SP24_Axpert_VM_IV_TWIN_ENG
