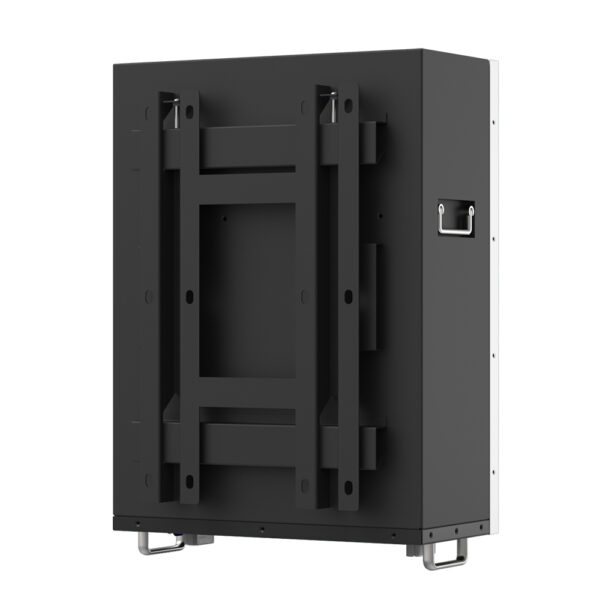

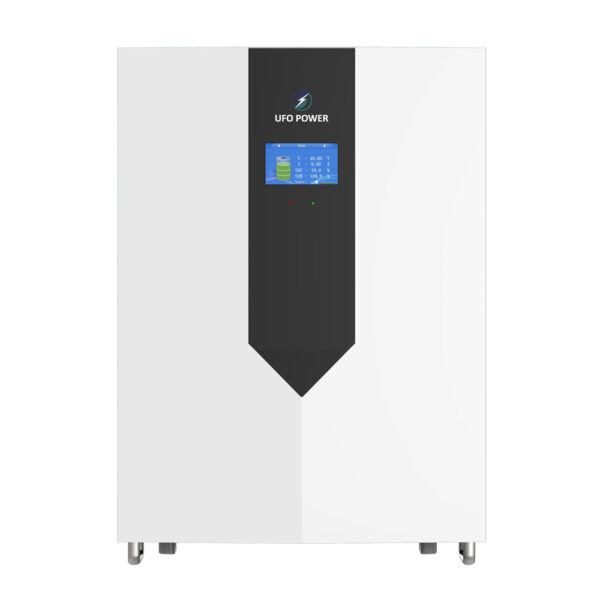

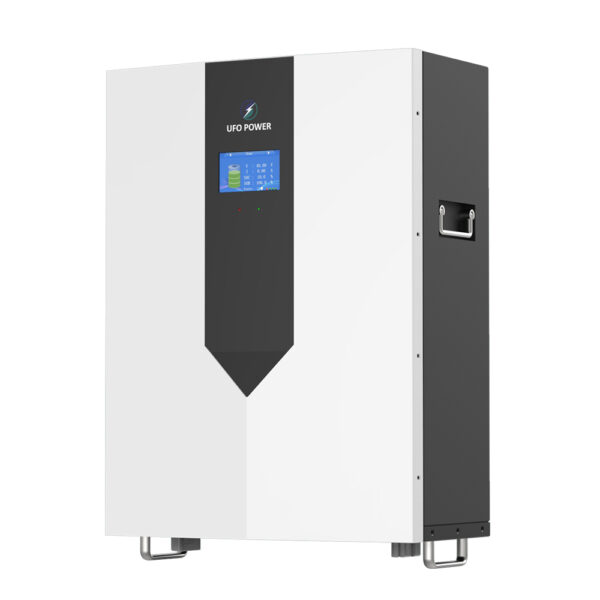

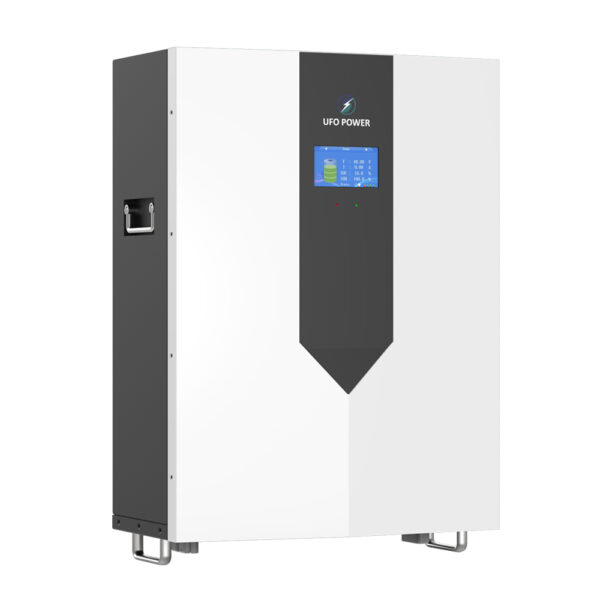

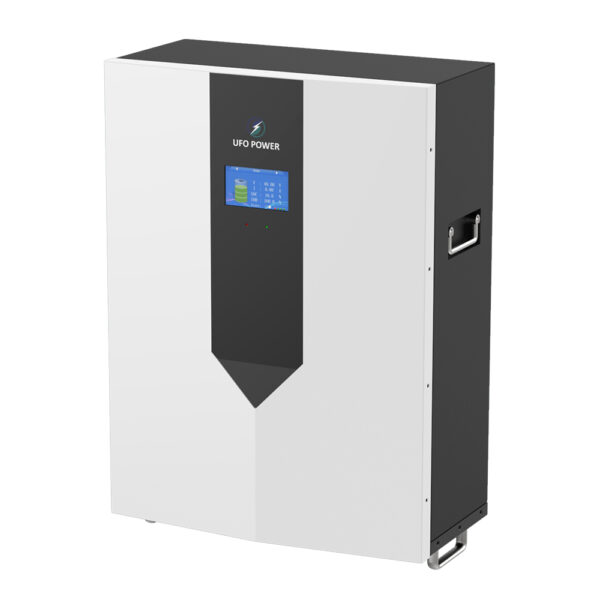

UFO Source WALL LifePO4 Battery 200ah 48 volts 9.6kw
€1.980,00
UFO Source Wall LifePO4 200Ah 48V 9.6Kw Battery for Solar Photovoltaic Systems

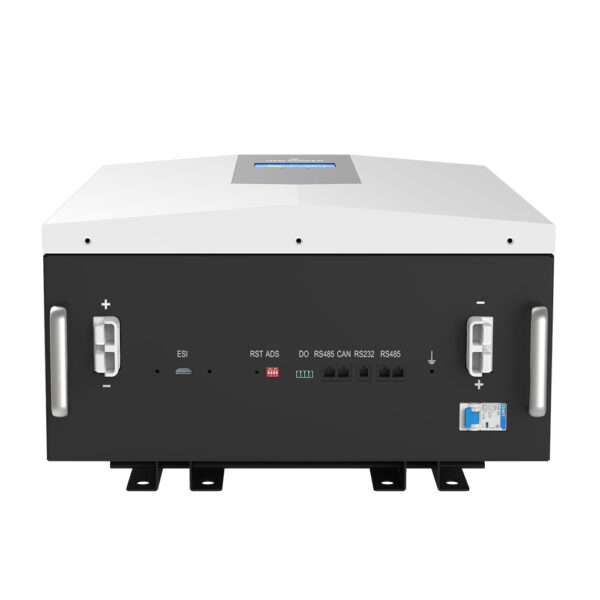

-battery with multiprotocol BMS for inverters of multiple brands including SP24, Voltronic (LIB protocol), Pylontech protocol both RS485 and CAN
|
Model of battery pack
|
WL-P48200
|
|
Nominal voltage |
LFP battery 48V |
|
Rated capacity |
200AH |
|
Rated reserved energy |
9600WH |
|
Standard charging current |
0.2C |
|
Total charging cut-off voltage |
52.50V |
|
Cut-off voltage of charging monomer |
3.5V |
|
Standard discharging current |
0.2C |
|
Maximum continuous discharging current |
100A |
|
Cut-off voltage of discharging monomer |
2.5V |
|
Charging temperature range |
-5℃～55℃ |
|
Discharging temperature range |
-20℃～65℃ |
|
Dimension (W×D×H) |
490*650*250mm (excluding hanger and Anderson connector) |
|
Weight |
80kg |
|
Compound mode |
15 strings |
|
Storage temperature |
0℃~40℃ |
|
Differential pressure |
Differential pressure at the discharging end (2.5V for monomer) ≤300mV Differential pressure at the charging end (3.65V for monomer）≤300mV |
Attention in case of purchasing the product with 10% VAT you will have to fill out a declaration that the products will be used for a renewable energy system The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, the site will recalculate according to the vat rate of the destination country THE FORM YOU CAN FIND HERE https://www.cercastock.it/repository/_barba_srl_dich_10.pdf THE PRODUCT CANNOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED AT EMAIL ADDRESS moduloiva@solarpower24.it or by fax at 0545030125
- Description
- Additional information
- Download Documents
- Reviews (0)
Description
UFO Source Wall LifePO4 200Ah 48V 9.6Kw Battery for Solar Photovoltaic Systems
High qualitylithium solar battery, UFO lithium solar battery is a deep cycle battery with over 6000 cycles of life at 80% DOD. Intelligent battery management system Up to15 lithium solar batteries in parallel for increased energy storage. Connection of up to 15 lithium batteries is supported for the solar energy storage system.
-battery with multiprotocol BMS for inverters of multiple brands including SP24, Voltronic (LIB protocol), Pylontech protocol both RS485 and CAN

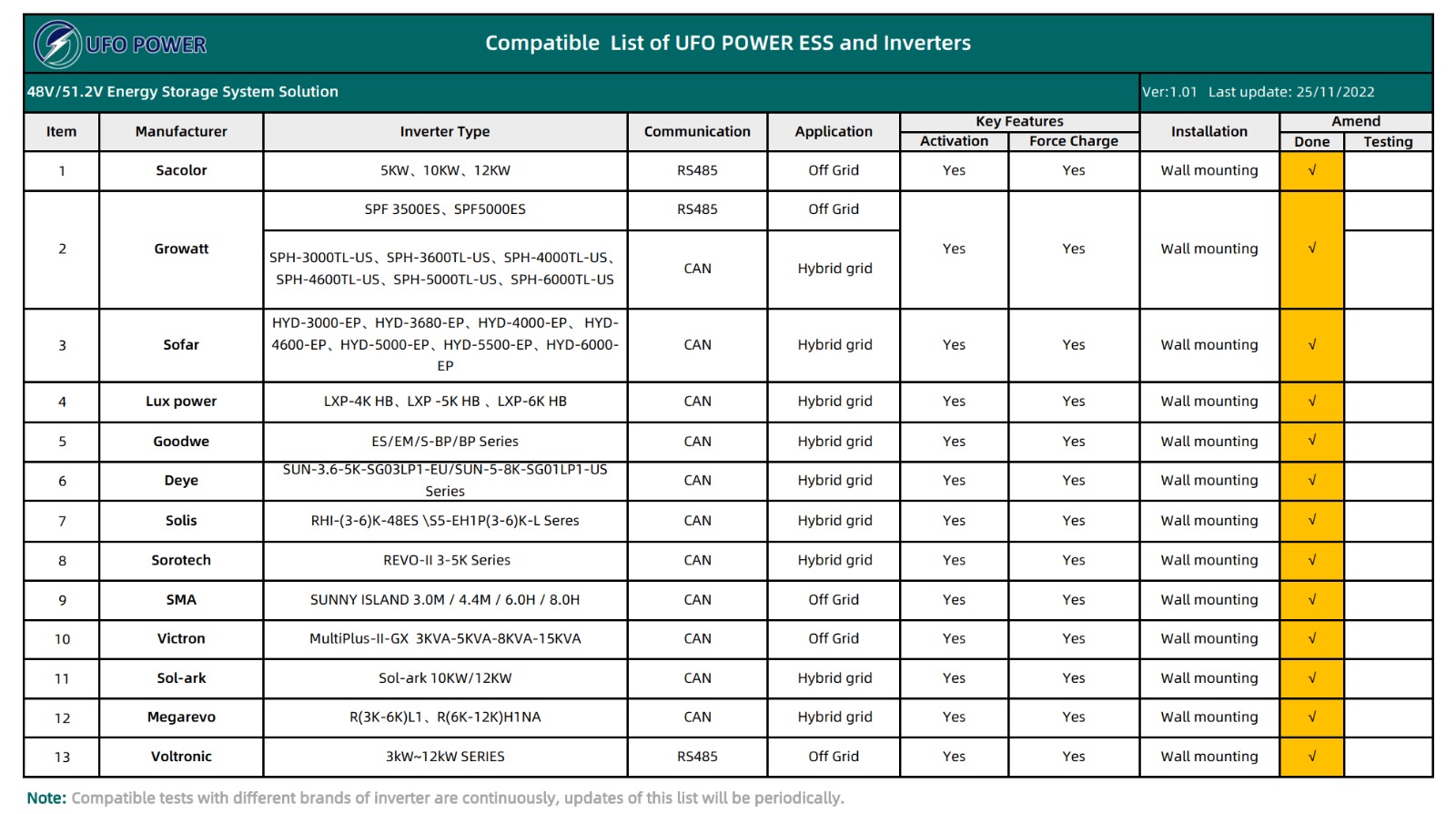

here is the complete list
|
Model of battery pack
|
WL-P48200
|
|
Nominal voltage |
LFP battery 48V |
|
Rated capacity |
200AH |
|
Rated reserved energy |
9600WH |
|
Standard charging current |
0.2C |
|
Total charging cut-off voltage |
52.50V |
|
Cut-off voltage of charging monomer |
3.5V |
|
Standard discharging current |
0.2C |
|
Maximum continuous discharging current |
100A |
|
Cut-off voltage of discharging monomer |
2.5V |
|
Charging temperature range |
-5℃～55℃ |
|
Discharging temperature range |
-20℃～65℃ |
|
Dimension (W×D×H) |
490*650*250mm (excluding hanger and Anderson connector) |
|
Weight |
88kg |
|
Compound mode |
15 strings |
|
Storage temperature |
0℃~40℃ |
|
Differential pressure |
Differential pressure at the discharging end (2.5V for monomer) ≤300mV Differential pressure at the charging end (3.65V for monomer）≤300mV |
Attention in case of purchasing the product with 10% VAT you will have to fill out a declaration that the products will be used for a renewable energy system The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, the site will recalculate according to the vat rate of the destination country THE FORM YOU CAN FIND HERE https://www.cercastock.it/repository/_barba_srl_dich_10.pdf THE PRODUCT CANNOT BE SHIPPED UNTIL THE COMPLETED FORM IS RECEIVED AT EMAIL ADDRESS moduloiva@solarpower24.it or by fax at 0545030125
