FOR CORRECT USE, PLEASE CONNECT THE BATTERIES TO THE INVERTER USING ONLY THE ORIGINAL CABLE KIT SOLD SEPARATELY

7 YEAR WARRANTY EXTENDABLE FREE TO 10 YEARS WITH DIRECT REGISTRATION ON THE PYLONTECH WEBSITE

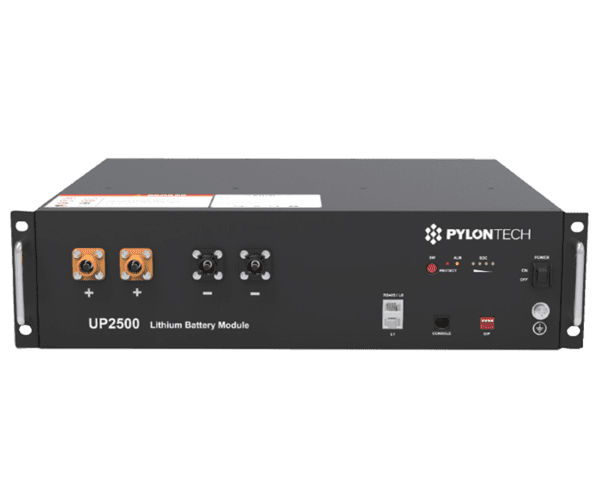

• The UP2500 battery is a LiFePo battery ideal for back-up systems of computers, data centers, and other equipment for commercial buildings, banks, hospitals, schools, railway stations, airports, telecommunications.
  Main characteristics
  Over voltage protection
  Over discharge protection
  Over current protection
  Short circuit protection

• Specifications	UP2500
  ELECTRICAL DATA
  Rated voltage [V]	25.6
  Nominal capacity (Wh)	2840
  Usable capacity (Wh)	2550
  Dimension (mm)	442*420*119
  Weight kg)	27.5
  Discharge voltage (V)	23 ~ 28.8
  Charging voltage (V)	28.2 ~ 28.8
  Charge / discharge current (A)	56 (continuous) / 111 (peak @ 15s)
  Communication port	RS485
  Working temperature ° C	0 ~ 50
  Storage temperature ° C	-20 ~ 60
  Humidity	5 %~90%
  Altitude	<2000
  Design life	10+ years (25 ° C / 77 ° F)
  Life cycle	>6000, 25 ° C
  Certificate	IEC62619 / RoHS / UN38.3
