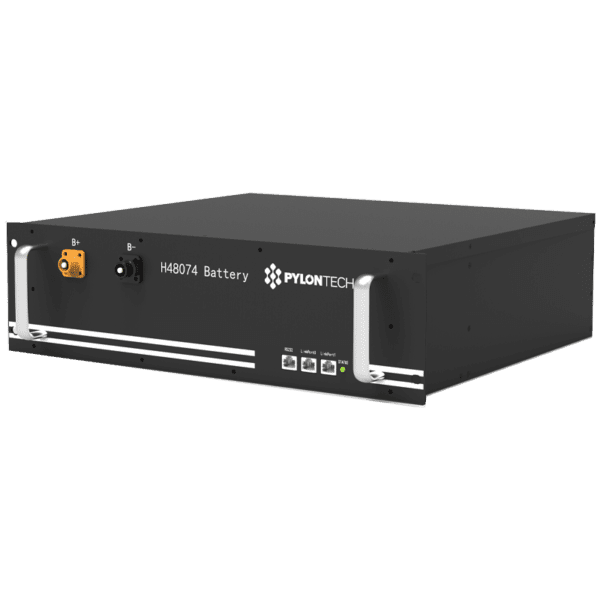

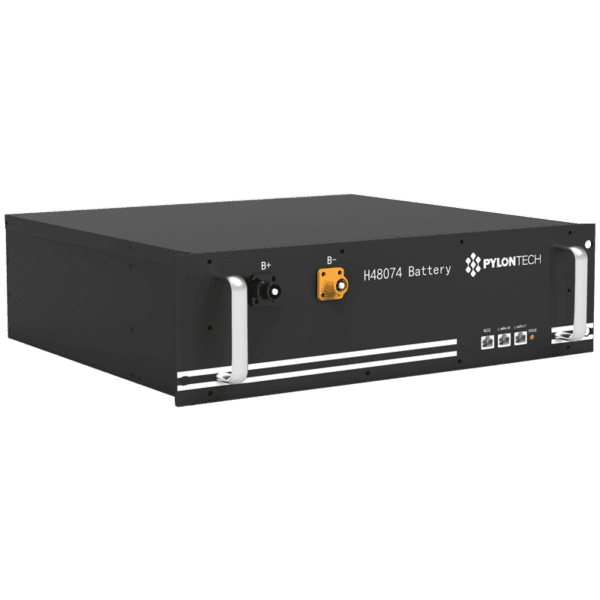

Pylontech H48074 lithium battery 3.55Kw High Voltage
€1.127,50
- Description
- Additional information
Description
H48050
Batteries to the lithium in high voltage
H48074 – Modules from 3,55 kWh
Pylontech’s H48074 lithium battery represents the latest technological frontier for high voltage photovoltaic storage applications.
LFP-type lithium technology also has the following advantages:
longer life cycle, which exceeds 5000 cycles, corresponding to about 11 years of work, with capacity at the end of life equal to 80%;
more stability and safety, thanks to the internal molecular structure of LFP batteries;
ease of expansion to obtain storage of important dimensions;
a compact and modular design that allows for easy installation / upgrade; the possibility of operating in different conditions
from temperature;
Monitoring, assistance included.
In the case of accumulation systems with EPS anti black-out mode, the instructions must be followed about the minimum amount of modules installed.
For operation, a BMS module model SC0500-40 is required
Technical data Battery to the Lithium
|
Template
|
H48074
|
|
ELECTRICAL DATA
|
|
|
Guy cell
|
Li-ion (LFP) |
|
Voltage [V] (single module)
|
48 |
|
Current [A]
|
25 (nominal) – 50 (max) |
|
Nominal capacity[Wh] (single module)
|
3550 |
|
Working voltage [V]
|
45 … 54 |
|
DOD [%]
|
90 (10-90) |
|
BUS
|
|
|
Communication bus
|
RS232, RS485, CAN |
|
Protocol of communication
|
YD / T 1363.3-2005 |
|
DIMENSIONS AND WEIGHTS
|
|
|
Height [mm]
|
140 (3U) |
|
Length [mm]
|
442 |
|
Depth [mm]
|
390 |
|
Weight [kg]
|
33 |
|
VARIOUS
|
|
|
Duration at 25 ° C
|
10+ years |
|
Life Cycles
|
>5000 60% EOL – 90% Do D. |
|
Backup duration [Potenza nominale 500W]
|
≥ 5 h |
|
Duration of charge maintenance
|
6 Months with off battery |
|
Discharge temperature [° C]
|
0… 50 |
|
Charging temperature [° C]
|
0… 5 0 |
|
Storage temperature [° C]
|
-20 … 60 |
|
Degree of protection
|
IP20 |
|
Seismic regulations
|
GR-1089 |
|
Transport regulations
|
A 3090 38. 3 |
|
EMC regulations
|
IEC 61000, EN 55022 |
|
Environmental legislation
|
GB / T 2423 |
|
Certificates
|
TÜV, CE, UN38.3, TLC |
Pylontech is the only battery to comply with the German safety regulation TUV Rheinland -VDE certified VDE-AR-E 2510-50.
