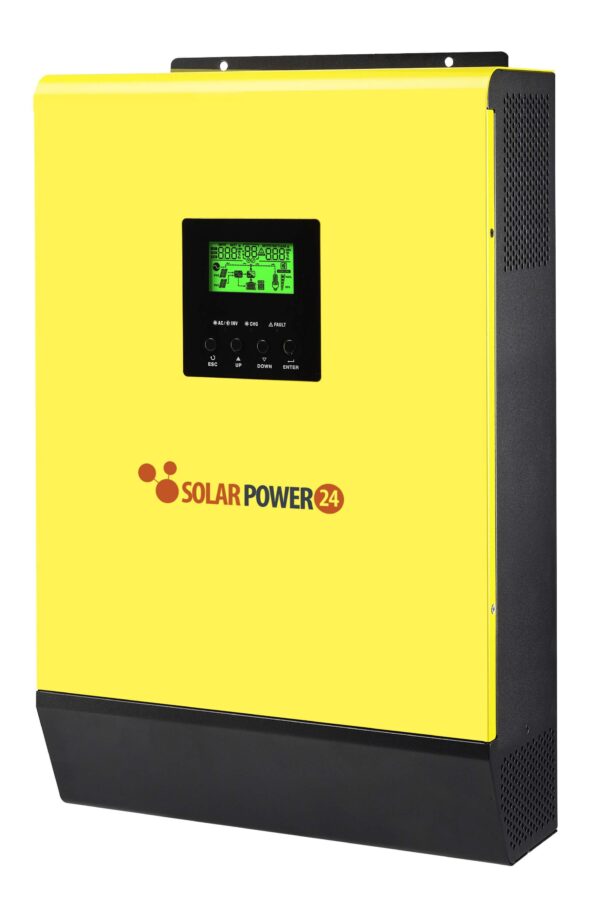

SP24 Infinisolar V II 5Kw 48 Volt Hybrid Solar Inverter / Off-Grid Island
€542,30
INVERTER HY V II 5K-48 only
• Pure sine wave output
• Self-consumption
• Programmable power priority for PV, battery or grid
• User adjustable charging current and voltage
• Multiple programmable operating modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel operation up to 9 units
- Description
- Additional information
- Reviews (0)
Description
SP24 Infinisolar V II 5K-48 Hybrid Solar Inverter – Off-Grid Island
INVERTER HY V II 5K-48 only
• Pure sine wave output
• Self-consumption
• Operation even without batteries with only AC input mains and panels
• Programmable power priority for PV, battery or grid
• User adjustable charging current and voltage
• Multiple programmable operating modes: Grid-tie, off-grid and grid-tie with backup
• Monitoring software for real-time status display and control
• Parallel operation up to 9 units (CARD TO BE PURCHASED SEPARATELY)
SPECIFICATIONS
|
MODEL
|
2KW
|
3 kW
|
5 kW
|
||
|
Rated output power
|
2000 W |
3000W |
5000W |
||
|
Input F (Dc)
|
|||||
|
Max. PV power |
3000W |
4000W |
5000W |
||
|
Max. PV array open circuit voltage |
450 Vdc |
||||
|
MPPT Range @ Operating Voltage |
90 VDC ~ 430 VDC |
120 VDC ~ 430 VDC |
|||
|
Number of MPP trackers |
1 |
||||
|
GRID-TIE OPERATION
|
|||||
|
MAINS OUT (AC)
|
|||||
|
Nominal output voltage: |
220/230/240 VAC |
||||
|
Grid supply voltage interval |
195.5 ~ 253 VAC @ India regulation 184 ~ 264.5 VAC @ Germany standard 184 ~ 264.5 VAC @ South America regulation |
||||
|
Frequency range of network distribution |
49 ~ 51Hz @ India standard 47.5 ~ 51.5Hz @ Germany standard 57 ~ 62Hz @ South America |
||||
|
Rated output current |
8.7A |
13A |
21.7A |
||
|
Power factor range |
>0,99 |
||||
|
Maximum conversion efficiency |
95% |
||||
|
OFF-GRID, HYBRID OPERATION
|
|||||
|
NETWORK INPUT
|
|||||
|
Acceptable range of input voltage |
90 – 280 VAC or 170 – 280 VAC |
||||
|
Frequency range |
(50Hz / 60Hz) (auto detect) |
||||
|
AC transfer relay calibration |
30 A |
40 A |
|||
|
BATTERY MODE OUTPUT (AC) |
|||||
|
Nominal output voltage: |
220/230/240 VAC |
||||
|
Output waveform |
Pure sine wave |
||||
|
Efficiency (DC to AC) |
93% |
||||
|
BATTERY AND CHARGER |
|||||
|
Nominal voltage DC |
48 VDC |
||||
|
Maximum charging current (from mains) |
60A |
80A |
|||
|
Maximum charging current (from PV) |
60A |
80A |
|||
|
Maximum charge current |
60A |
80A |
|||
|
GENERAL DATA |
|||||
|
Dimensions (L x W x H, mm) |
120 x 295 x 468 |
||||
|
Net weight (kg) |
11 |
11 |
12 |
||
|
INTERFACE |
|||||
|
Parallelable |
Yup |
||||
|
External safe (optional) |
Yup |
||||
|
Communication |
USB or RS232 / Dry-Contact |
||||
|
ENVIRONMENT |
|||||
|
Humidity |
0 ~ 90% RH (non-condensing) |
||||
|
Operating temperature |
– 10 ° C + 50 ° C |
||||
.Attention the sale price of these products is with 10% VAT in case of purchase you will have to fill in a declaration that the products will be used for a renewable energy system. In the case of foreign customers, the final sale price will be calculated automatically based on the VAT rate of the country of destination
.
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
.
.
