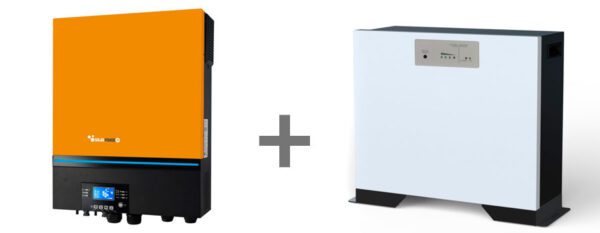

Kit SP24 Axpert Max 7.2Kw 48V Off-Grid Inverter and Battery LIO-II 4810
€2.190,10 (Tax Excl. .€1.991,00)
- Description
- Additional information
Description
KIT Axpert Max 7.2Kw 48V 6000-48 Inverter Solar Island Off Grid
+
Voltronic Lio II-4810 Lifepo4 Battery Module 5.12Kw for Voltronic inverters, SP24, EASUN, ETC.
Batteries with grounded base and stackable up to 3 modules
Primo Axpert MAX 7200-48 Inverter 8kw 48 volts off grid island Photovoltaic inverter for off grid hybrid island system
• Status indication with RGB lights
• Integrated Wi-Fi for mobile monitoring (Android / iOS app available)
• Supports USB On-the-Go function
• Communication port reserved for BMS (RS485, CAN-BUS or RS232)
• Replaceable fan design for ease of maintenance
• Battery independent design
• Configurable timer and priority of use of the AC / PV output
• High power selectable charging current
• Selectable input voltage range for home appliances and personal computers
• Communication with BMS battery Pylontech US2000 / US3000
• Compatible with mains or generator input
• Built-in dustproof kit
• Optional DC output for DC fan, LED bulb, router and so on.
– Parallel operation with 6 units for the 7.2/8.0 model
| Axpert MAX Specification | |
| MODEL | Axpert MAX 7200-48-230 |
| AC power in watts | 7200VA * / 7200W |
| Can be installed in parallel | YES, max 6 units |
| INPUT | |
| Voltage | 230 VAC |
| Voltage range | 170-280 VAC (For Computers) |
| 90-280 VAC (For Home Appliances) | |
| Frequency | |
| Ac output | |
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% |
| Peak AC power | 15000VA |
| Efficiency (Peak) | 90% ~ 93% |
| Switching time | 15 ms (For Personal Computers), 20 ms (For Home Appliances) |
| Wave type | Pure sine wave |
| Inverter consumption without loads | <50W |
| Battery | |
| Voltage | 48 VDC |
| Float charge voltage | 54 VDC |
| Overload protection voltage | 66 VDC |
| Solar Cairca and AC Charge | |
| Charger type solar motor | MPPT x 2 |
| Maximum power that can be installed on the panels | 8000W |
| MPPT panel operating voltage | 90 ~ 430 VDC |
| Maximum installation voltage VOC | 450 VDC |
| Maximum solar charge current | 120A |
| Maximum AC charging current | 120A |
| INDICATORS | |
| AC Mode | |
| Battery Mode | |
| Fault | |
| ALARM | |
| Low Battery | |
| Overload | |
| Battery Replacement | |
| Fault | |
| Maximum total charge current | 120A |
| Size, weight and ports | |
| Dimension, DXWXH (mm) | 143 x 420 x 531 |
| Net Weight (kgs) | 16 |
| Communication Interface | USB / RS232 / RS485 / Wifi / Dry-contact |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -10 ℃ to 50 ℃ |
| Storage Temperature | -15 ℃ to 60 ℃ |
| STANDARD |
Battery Specifications
|
LIO II-4810 LIFEPO4 BATTERY 5.12KW 48V
|
||
|
BATTERY MODULE
|
LIO II-4810
|
|
|
CAPACITY
|
5120Wh |
|
|
PARAMETERS
|
||
|
Norminal Voltage |
51.2VDC |
|
|
Full Charge Voltage(FC) |
56V |
|
|
Full Discharge Voltage(FD) |
42V |
|
|
Typical Capacity |
100 Ah |
|
|
Max Continuous Discharging Current |
150A |
|
|
Max Discharging Current |
192A at 1min |
|
|
Protecttion |
BMS, breaker |
|
|
Charge Voltage |
56V |
|
|
Charge Current |
20A (0.2C) |
|
|
Maximum Charge current |
50A (0.5C) |
|
|
Standard Charge method |
0.2C DC (Constant current) charge to FC, |
|
|
Inner Resistance |
≤20m ohm |
|
|
PHYSICAL
|
||
|
Dimension, DXWXH (mm) |
214 x 621 x 550 |
|
|
Net Weight (kgs) |
55 |
|
|
*These figures may vary depending on different AC voltage and contry regulation. |
||
|
Product specifications are subject to change without further notice |
||
.
The product can be sold with VAT reduced to 10% exclusively to Italian residents with shipping to Italy. In case of foreign customers, please visit the Inverter for EU countries section of the website
THE FORM CAN BE FOUND HERE
https://www.cercastock.it/repository/_barba_srl_dich_10.pdf
THE PRODUCT CANNOT BE SHIPPED UNTIL RECEIPT OF THE
Additional information
| Weight | 70 kg |
|---|
