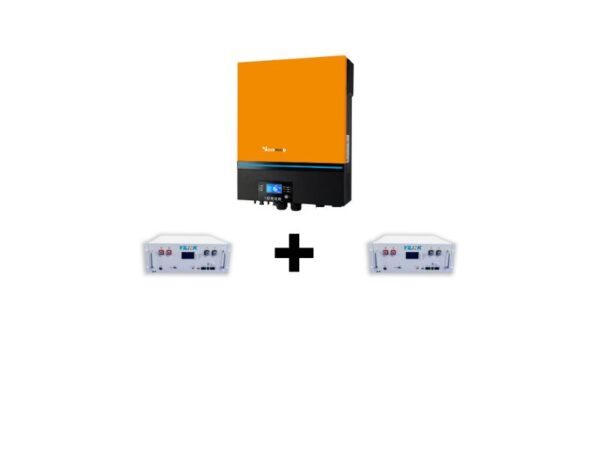

Kit SP24 Axpert Max 8.0Kw 48V Off-Grid Inverter and 2 x Yilink 100AH 48V Batteries total 9.6Kw storage
€2.900,70
Offer Ends In:
- Description
- Additional information
Description
Kit SP24 Axpert Max 8.0Kw 48V Off-Grid Inverter and 2 x Batteries SP24 100AH 48V total 9.6Kw storage
Main features inverter:
- Status indication with RGB lights;
- It supports the USB On-the-Go function;
- Reserved communication port for BMS (RS485);
- Replaceable fan design for ease of maintenance;
- Battery-independent design;
- Configurable timer and priority of AC / PV output use;
- Selectable high-power charging current;
- Selectable input voltage range for home appliances and personal computers;
- Communication with BMS batteries Pylontech US2000C/ US3000C/US5000; SP24, VOLTRONIC, YILINK
- Compatible with mains or generator input;
- Built-in anti-dust kit;
- Optional DC output for DC fan, LED bulb, router and so on;
- Parallel operation with 6 units
2 x Yilink 100AH 48V Batteries total 9.6Kw
Main features Battery
|
No.
|
Items
|
General Parameter
|
Remark
|
|
|
1 |
Combination method |
15S |
|
|
|
2 |
Nominal Voltage |
48V |
|
|
|
3 |
Rated Capacity |
Typical |
100Ah |
|
|
Minimum |
100Ah |
|||
|
4 |
Energy |
4800Wh |
|
|
|
5 |
Factory Voltage |
48~51V |
Mean Operation Voltage |
|
|
6 |
Voltage at end of Discharge |
37.5~42V |
Discharge Cut-off Voltage |
|
|
7 |
Voltage at end of Charge |
52.5~55.5V |
Charge Cut-off Voltage |
|
|
8 |
Standard charge |
Constant Current 20A Constant Voltage see No.7 0.02CA cut-off |
Charge time : Approx 5~6 h |
|
|
9 |
Limiting current |
20A |
BMS Limited (Charge current is ≥100A to open the current Limit) |
|
|
10 |
Standard discharge |
Constant current ： 20A end voltage see NO.6 |
|
|
|
11 |
Maximum Continuous Charge Current |
100A |
50ºC≥T≥5ºC |
|
|
12 |
Maximum Continuous Discharge Current |
100A |
55ºC≥T≥0ºC |
|
|
13 |
Operation Temperature Range |
Charge:0~55℃ |
60±25%R.H. No matter what mode the battery is in, once the temperature is found to exceed the absolute temperature range, stop charging or discharging immediately |
|
|
Discharge:–20~60℃ |
||||
|
14 |
Storage Temperature Range |
Less than 6 months: -10~35℃ |
60±25%R.H. at the shipment state |
|
|
Less than 3 months: -10~45℃ |
||||
|
Less than 1 months: -20~55℃ |
||||
|
15 |
Dimensions(W*D*H) |
442 * 480 * 178mm |
Include case |
|
|
16 |
Net Weight |
46Kg |
Include case |
|
|
17 |
Internal Impedance |
≤45 m Ω |
Internal resistance measured at AC 1KHZ after 50% charge. The measure must uses the new batteries that within one week after shipment and cycles less than 5 times. |
|
Battery Management System
|
Function
|
||
|
Alarm |
Cell over-charge voltage |
Cell charge low temperature |
|
Cell over-discharge voltage |
Cell charge over temperature |
|
|
Pack over-charge voltage |
Cell discharge low temperature |
|
|
Pack over-discharge voltage |
Cell discharge over temperature |
|
|
Over-current charge |
Environment low temperature |
|
|
Over-current discharge |
Environment over temperature |
|
|
Mos over temperature |
|
|
|
Protection |
Cell over-charge voltage |
Cell charge over temperature |
|
Cell over-discharge voltage |
Cell discharge low temperature |
|
|
Pack over-charge voltage |
Cell discharge over temperature |
|
|
Pack over-discharge voltage |
Environment low temperature |
|
|
Over-current charge |
Environment over temperature |
|
|
Over-current discharge |
Short circuit |
|
|
Mos over temperature |
Fault |
|
|
Cell charge low temperature |
|
|
|
Others |
Cell balance function |
|
|
Communicate function |
||
|
Total capacity function |
||
|
Storage history function |
||
|
Current limiting function |
||
|
Dry contact function |
||
|
No.
|
Items
|
Description
|
|
1 |
+ Power terminal |
Power cable terminals: one connect to equipment, the other one paralleling to other battery module for capacity expanding |
|
2 |
– Power terminal |
|
|
3 |
LCD Screen |
Display the battery’s data |
|
4 |
Power Switch |
To turn ON / OFF while battery |
|
5 |
Working indicator light |
Display state information |
|
6 |
ALM alarm indicator light |
Red-trouble-light on |
|
7 |
Capacity volume indicator |
Display the battery’s capacity |
|
8 |
Reset Key |
Sleep / Activation / Reset |
|
9 |
ADS Dialer |
4 ADD switches, to define different address code for each battery module when multiple modules are cascaded, up to 15 addresses. |
|
10 |
Dry Contact Terminal |
1/2 Normally open, closed during fault protection; 3/4 Normally open, closed when a low battery alarm |
|
11 |
RS485 |
RJ45 Port,used to connect to the inverter’s RS485 port |
|
12 |
CAN |
RJ45 Port,used to connect to the inverter’s CAN port |
|
13 |
RS232 |
RJ11 Port,used battery condition monitoring or manufacturer to debug or service |
|
14/15 |
RS485 |
RJ45 Port,used communication in parallel |
|
16 |
Grounding Point |
Safety |
.
