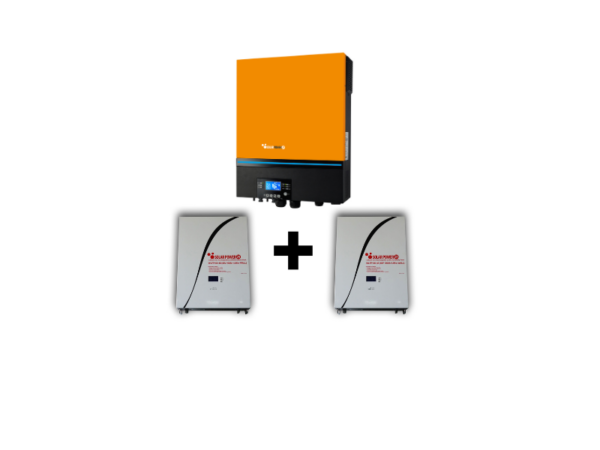

Kit SP24 Axpert Max 8.0Kw 48V Off-Grid Inverter and 2 x Batteries SP24 100AH 48V total 9.6Kw storage
€3.285,70
- Description
- Additional information
Description
Kit SP24 Axpert Max 8.0Kw 48V Off-Grid Inverter and 2 x Batteries SP24 100AH 48V total 9.6Kw storage
Main features inverter:
- Status indication with RGB lights;
- It supports the USB On-the-Go function;
- Reserved communication port for BMS (RS485);
- Replaceable fan design for ease of maintenance;
- Battery-independent design;
- Configurable timer and priority of AC / PV output use;
- Selectable high-power charging current;
- Selectable input voltage range for home appliances and personal computers;
- Communication with BMS batteries Pylontech US2000C/ US3000C/US5000; SP24, VOLTRONIC, YILINK
- Compatible with mains or generator input;
- Built-in anti-dust kit;
- Optional DC output for DC fan, LED bulb, router and so on;
- Parallel operation with 6 units
| MODEL | BT-SP-LFP48V100AH |
| ELECTRICAL FEATURES | |
| Nominal Capacity (10 h) | 100ah |
| Nominal voltage | 48V |
| Power | 4800W |
| Internal Resistance | <= 80mΩ |
| Charge / Discharge cycles with 100% DOD | >2500 |
| Charge / Discharge cycles with 80% DOD | >5000 |
| DIMENSIONS, WEIGHT, CONNECTOR | |
| Width mm | 442 |
| Depth mm | 400 |
| Height mm | 220 |
| Approximate Weight Kg | 60 |
| CHARGE AND DISCHARGE VALUES | |
| Bulk Charge Voltage | 52.50v |
| Float Charge Voltage | 52.50v |
| Charge Current | 25A |
| Maximum Charge Current | 50A |
| Maximum discharge current | 100A |
| OPERATING TEMPERATURES | |
| Load | 0-45 ° C |
| Download | -20-60 ° C |
| Storage | 0-40 ° C |
| COMMUNICATION INTERFACES | |
| Modbus | |
| RS485 / RS232 | |
.
