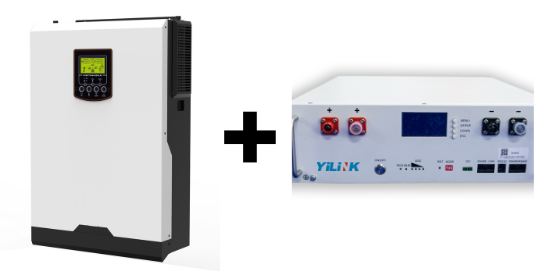

Kit Axpert VM II 5.0Kw 48V Off-Grid Inverter and 1 x Yilink 50ah 48v 2.4Kwh Battery
€1.087,90
- Description
- Additional information
Description
Kit Axpert VM II 5.0Kw 48V Off-Grid Inverter and 1 x Yilink 50ah 48v 2.4Kw Battery
INVERTER Voltronic AXPERT VM II Premium 5000-48
– Alternating Current Power 5kw
– 48V battery pack support
– Installed Power Panels 5kw
– Pure sine wave solar inverter
– Selectable high-power charge current
– Wide DC input range (up to 500 volts VOC)
– AC / Solar input priority configurable via LCD setting
– BMS Rs485 communication port (compatible with VOLTRONIC, SP24,PYLONTECH, YILINK batteries)
Yilink Battery LifePo4 2.4Kw 50A 48v Rack 3U version
Equipped with its own BMS, it can be used with any 48v inverter.
Possibility of BMS communication cable connection with Voltronic inverters (all models with BMS port) such as Axpert King, Vm III, Vm IV, Mks III, Mks IV, Axpert Max (all 48v models) and Max II
Battery Pack Parameters
|
No.
|
Items
|
General Parameter
|
Remark
|
|
|
1 |
Combination method |
15S |
|
|
|
2 |
Nominal Voltage |
48V |
|
|
|
3 |
Rated Capacity |
Typical |
50Ah |
|
|
Minimum |
50Ah |
|||
|
4 |
Energy |
2400Wh |
|
|
|
5 |
Factory Voltage |
48~51V |
Mean Operation Voltage |
|
|
6 |
Voltage at end of Discharge |
37.5~42V |
Discharge Cut-off Voltage |
|
|
7 |
Voltage at end of Charge |
52.5~55.5V |
Charge Cut-off Voltage |
|
|
8 |
Standard charge |
Constant Current 10A Constant Voltage see No.7 0.02CA cut-off |
Charge time : Approx 5~6 h |
|
|
9 |
Limiting current |
20A |
BMS Limited (Charge current is ≥50A to open the current Limit) |
|
|
10 |
Standard discharge |
Constant current：10A end voltage see NO.6 |
|
|
|
11 |
Maximum Continuous Charge Current |
50A |
50ºC≥T≥5ºC |
|
|
12 |
Maximum Continuous Discharge Current |
50A |
55ºC≥T≥0ºC |
|
|
13 |
Operation Temperature Range |
Charge:0~55℃ |
60±25%R.H. No matter what mode the battery is in, once the temperature is found to exceed the absolute temperature range, stop charging or discharging immediately |
|
|
Discharge:–20~60℃ |
||||
|
14 |
Storage Temperature Range |
Less than 6 months: -10~35℃ |
60±25%R.H. at the shipment state |
|
|
Less than 3 months: -10~45℃ |
||||
|
Less than 1 months: -20~55℃ |
||||
|
15 |
Dimensions(W*D*H) |
442*480*133mm |
Include case |
|
|
16 |
Net Weight |
27Kg |
Include case |
|
|
17 |
Internal Impedance |
≤50mΩ |
Internal resistance measured at AC 1KHZ after 50% charge. The measure must uses the new batteries that within one week after shipment and cycles less than 5 times. |
|
Battery Management System
|
Function
|
||
|
Alarm |
Cell over-charge voltage |
Cell charge low temperature |
|
Cell over-discharge voltage |
Cell charge over temperature |
|
|
Pack over-charge voltage |
Cell discharge low temperature |
|
|
Pack over-discharge voltage |
Cell discharge over temperature |
|
|
Over-current charge |
Environment low temperature |
|
|
Over-current discharge |
Environment over temperature |
|
|
Mos over temperature |
|
|
|
Protection |
Cell over-charge voltage |
Cell charge over temperature |
|
Cell over-discharge voltage |
Cell discharge low temperature |
|
|
Pack over-charge voltage |
Cell discharge over temperature |
|
|
Pack over-discharge voltage |
Environment low temperature |
|
|
Over-current charge |
Environment over temperature |
|
|
Over-current discharge |
Short circuit |
|
|
Mos over temperature |
Fault |
|
|
Cell charge low temperature |
|
|
|
Others |
Cell balance function |
|
|
Communicate function |
||
|
Total capacity function |
||
|
Storage history function |
||
|
Current limiting function |
||
|
Dry contact function |
||
|
No.
|
Items
|
Description
|
|
1 |
+ Power terminal |
Power cable terminals: one connect to equipment, the other one paralleling to other battery module for capacity expanding. |
|
2 |
– Power terminal |
|
|
3 |
LCD Screen |
Display the battery’s data |
|
4 |
Power Switch |
To turn ON/OFF while battery. |
|
5 |
Working indicator light |
Display state information. |
|
6 |
ALM alarm indicator light |
Red-trouble-light on. |
|
7 |
Capacity volume indicator |
Display the battery’s capacity. |
|
8 |
Reset Key |
Sleep /Activation /Reset. |
|
9 |
ADS Dialer |
4 ADD switches, to define different address code for each battery module when multiple modules are cascaded, up to 15 addresses |
|
10 |
Dry Contact Terminal |
1/2 Normally open, closed during fault protection; 3/4 Normally open, closed when a low battery alarm |
|
11 |
RS485 |
RJ45 Port,used to connect to the inverter’s RS485 port |
|
12 |
CAN |
RJ45 Port,used to connect to the inverter’s CAN port |
|
13 |
RS232 |
RJ11 Port,used battery condition monitoring or manufacturer to debug or service |
|
14 |
RS485 |
RJ45 Port,used communication in parallel |
|
15 |
Grounding Point |
Safety |
