Eastron SDM630MCT-MV Single Phase / Three Phase AC 400V Digital Modbus Counter
€90,20 (Tax Excl. .€82,00)
- Description
- Additional information
Description

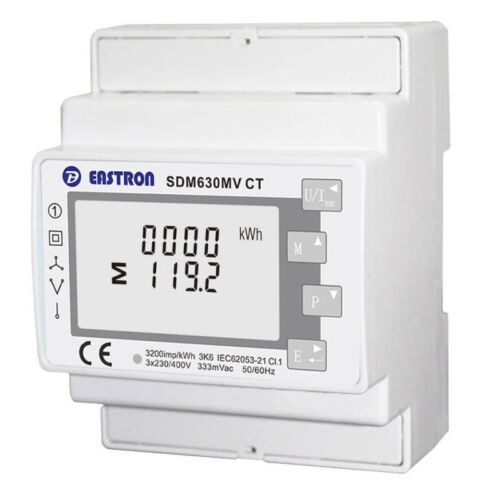

Eastron SDM 630MCT-MV Digital Energy Meter Multifunction Single/Three Phase AC 230/400V
requires (to be purchased separately) CT/TA xxx/0.333V
requires (to be purchased separately) CT/TA xxx/0.333V
Eastron SDM 630MCT-MV Multifunctional Digital Meter single phase/ 3 phase AC 230/400V
requires (to be bought separate) CT/TA xxx/0.333V
requires (to be bought separate) CT/TA xxx/0.333V
CT and PT Operated
Measures kWh Kvarh, KW, Kvar, KVA, P, F, PF etc.
Bi-directional Measurement IMP & EXP
Work with 3P4W,3P3W,1P2W
Two Pulse Outputs
Class 0.5S/ 1.0
Touch Button Operation
SDM630M CT series measures and displays the characteristics of 1p2w, 3p3w and 3p4w supplies, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic etc. Bi-directional measurement makes it an ideal choice for Solar PV measurement.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
Two pulse outputs and 1 communication port (Modbus) are provided for remote monitoring in AMR system or SCADA system.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
Additional information
| Weight | 0,50 kg |
|---|
