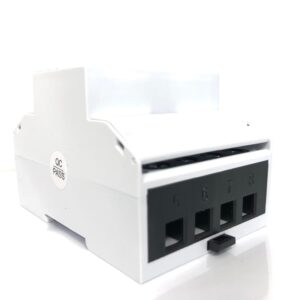

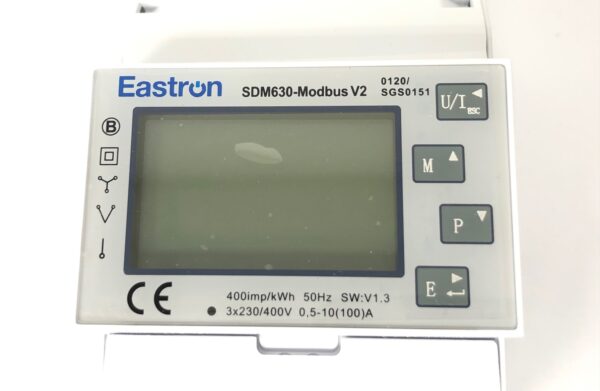

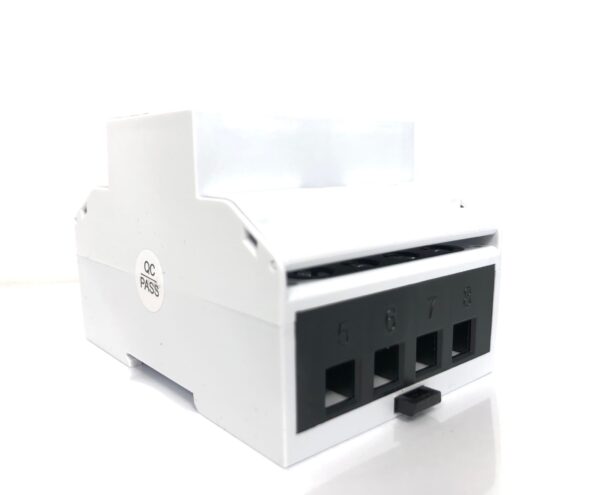

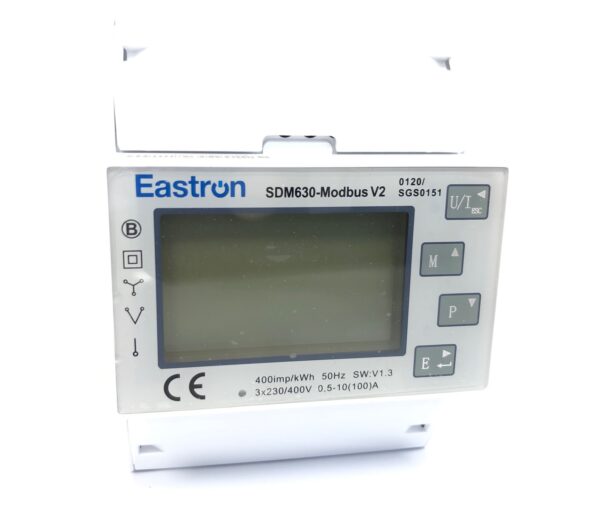

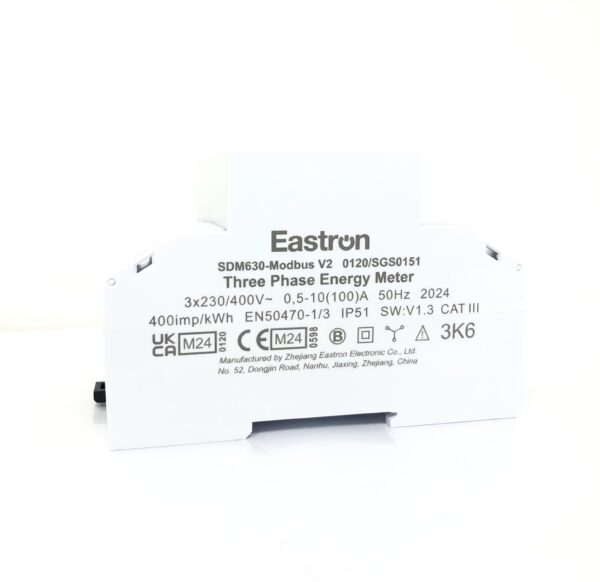

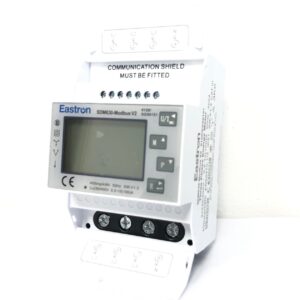

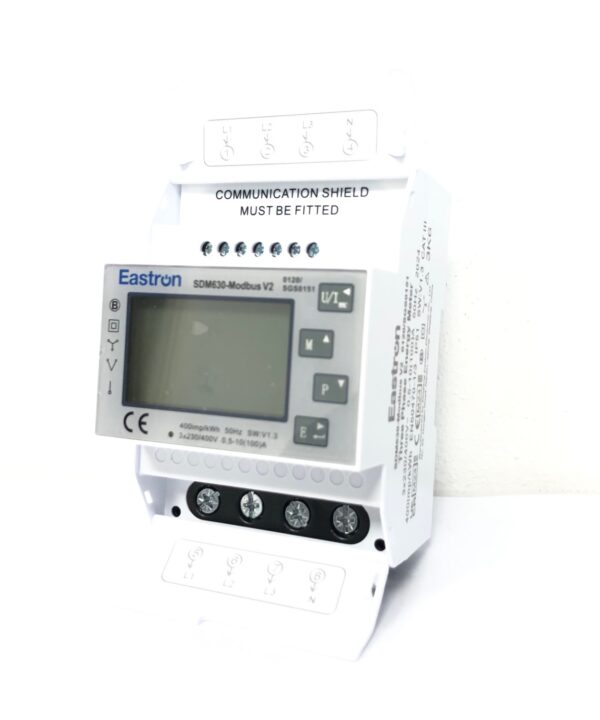

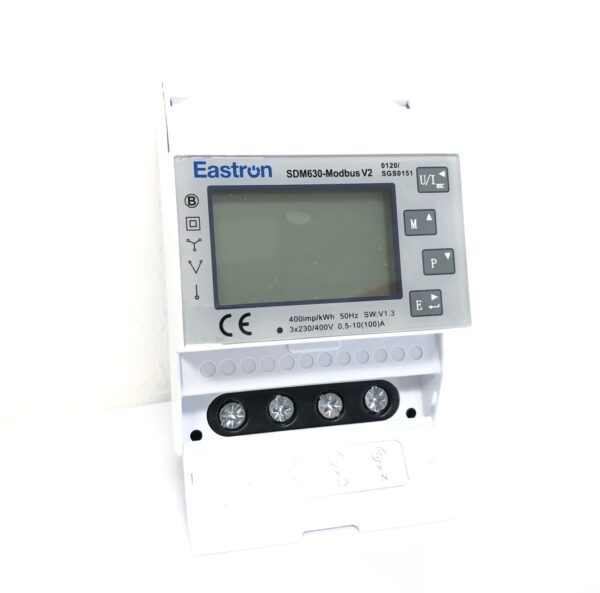

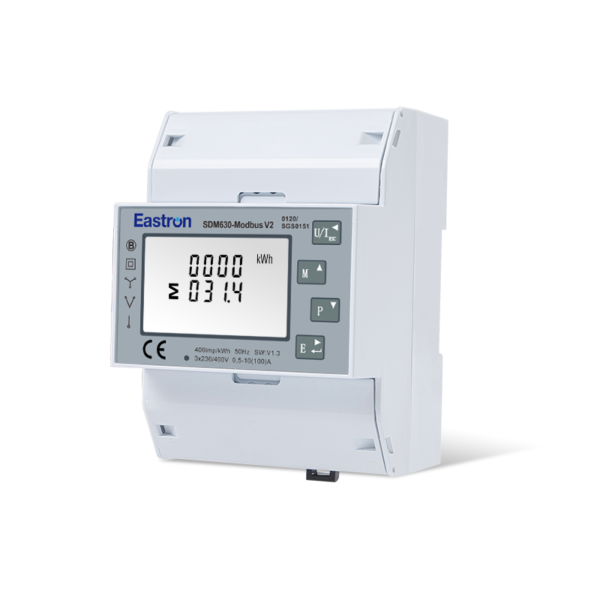

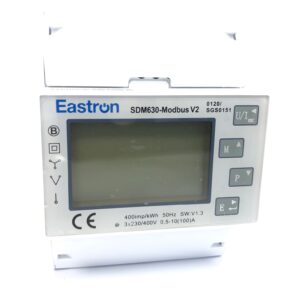

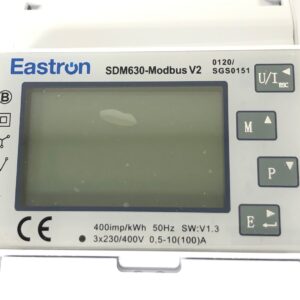

Eastron SDM630M Modbus V2 MID Misuratore di Energia Monofase / Trifase AC 400V Digitale 100A certificato MID
€104,50
- Descrizione
- Informazioni aggiuntive
Descrizione
Eastron SDM 630 Contatore Digitale Misuratore di Energia Multifunzione Monofase/Trifase
230V/400V 100 Ampere con connessione diretta 4 moduli DIN
230V/400V 100 Ampere con connessione diretta 4 moduli DIN
Certificato MID: EN50470-1 & EN50470-3
Caratteristiche: kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.
Bidirezionale Import e Export
RS485 Modbus
Montaggio su modulo Din
Connessioni dirette fino a 100A
Precisione Migliore di Class 1
SDM630M V2
Three Phase Multi-function Meter
100A direct load
Work with 3P4W/3P3W/1P2W
4 Module 72mm wide
Multi-measurement: kWh,kVarh,W,Var,VA,PF,Hz,dmd,V,
Bi-directional measurement
2 Pulse outputs
SDM630 series measures and displays the characteristics of 1p2w, 3p3w and 3p4w supplies, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic etc. Bi-directional measurement makes it an ideal choice for Solar PV measurement.
The units support Max. 100A direct connection, saving the cost and avoiding the trouble to connect external CTs. Two pulse outputs and 1 communication port (Mbus/Modbus) are provided for remote monitoring.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
