Description

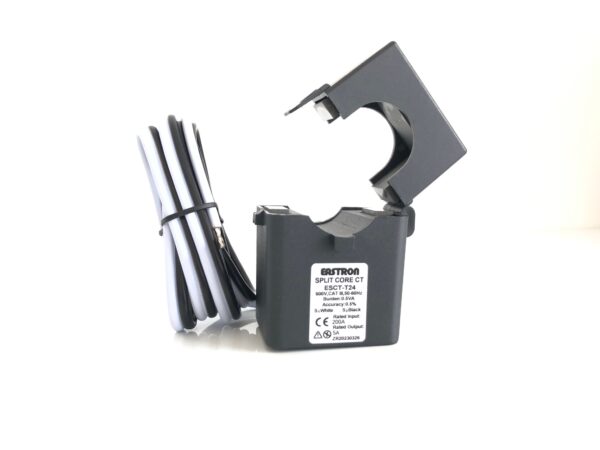

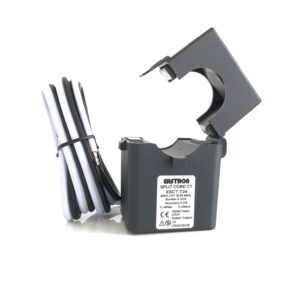

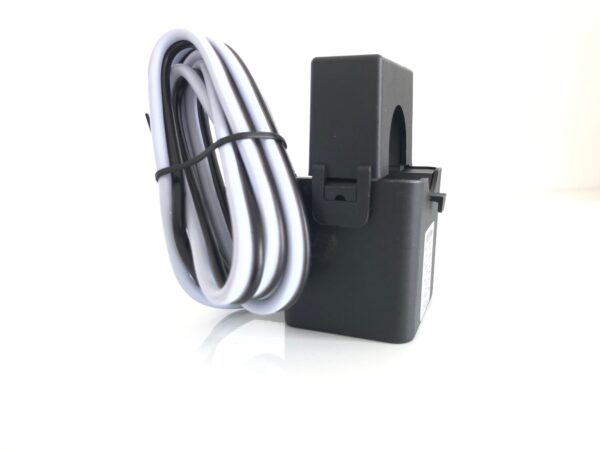

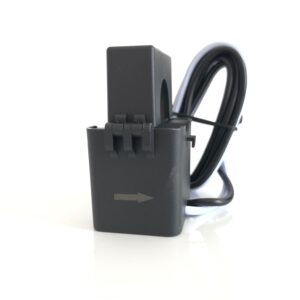

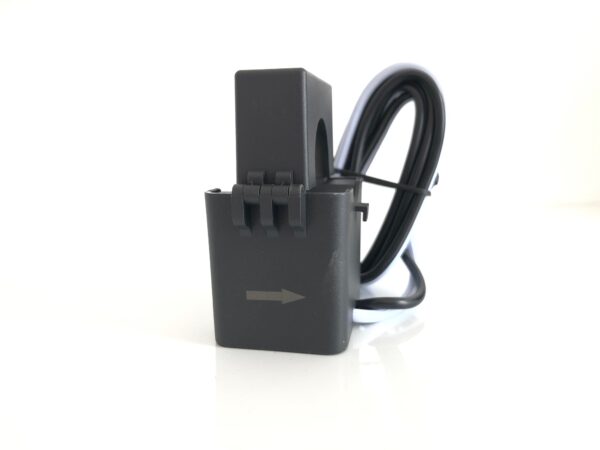

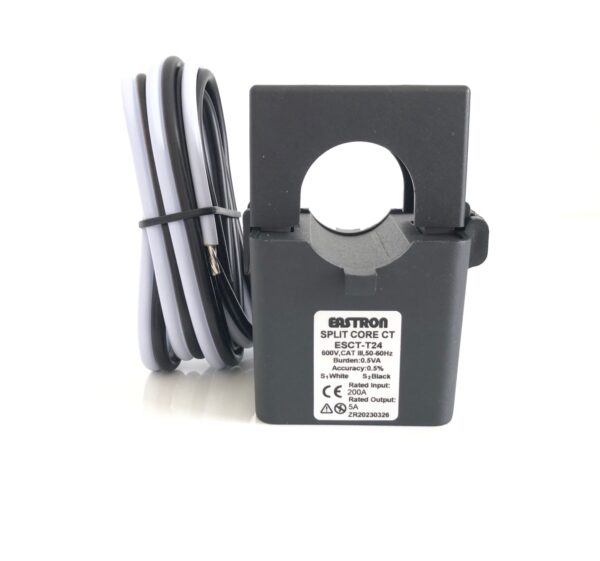

ESCT-T24 Current Transformer 200A / 5A SPLIT CORE (OPEN)

BY COUNTER EASTRONSDM630CTOR OTHER

– Divided core
– Safe operation
– Small size
– Very easy to assemble
– Large interior window
– Wide range of sizes for all existing installations
– 200 A primary current
– Secondary output 5A

Description

The EastronESThe CT-T series of split-core current transformers is designed for quick and easy installation. The split-core design allows non-contact current measurements through magnetic field induction without requiring the primary cable to be disconnected from the line and unplugged for CT installation. This method enables safer, easier and more portable current measurement. An internal precision load resistor on the CT secondary winding provides a safe low-voltage output and allows safe opening of the secondary circuit.

Specifications

Model Number : ESCT-T24

Usage :
Current
Stage :
Separate
Coil structure Other
Coil number :
More
Frequency :
50Hz/60Hz
Rated current :
from 200A
Window size :
35.7 mm
Wire cable :
1 meter sheathed cable
Output :
5A output
Color :
Black
Certification :
THERE IS
Isolation voltage 600 VAC
core :
Permalloy Core
Coil :
PBT

Application

* Current measurement, monitoring and protection for wiring and electrical equipment

* Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air conditioning equipment, and automation.

* Current, power and energy monitoring device

* Relay protection device

Additional information

Weight 0,50 kg
