– Divided core
– Safe operation
– Small size
– Very easy to assemble
– Large interior window
– Wide range of sizes for all existing installations
– 100 A primary current
– Secondary output 5A

Description

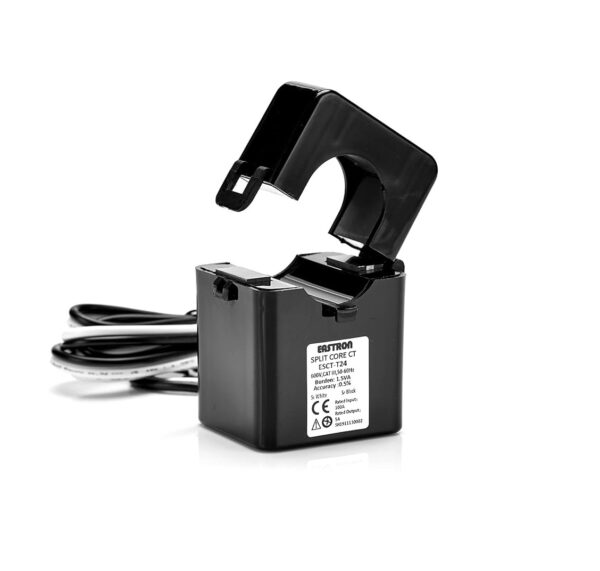

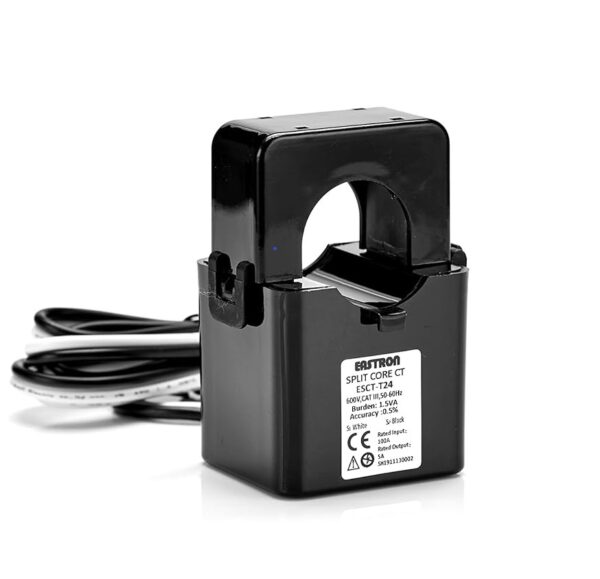

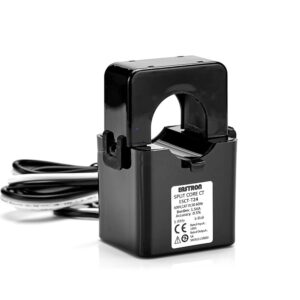

The EastronESThe CT-T series of split-core current transformers is designed for quick and easy installation. The split-core design allows non-contact current measurements through magnetic field induction without requiring the primary cable to be disconnected from the line and unplugged for CT installation. This method enables safer, easier and more portable current measurement. An internal precision load resistor on the CT secondary winding provides a safe low-voltage output and allows safe opening of the secondary circuit.

Specifications

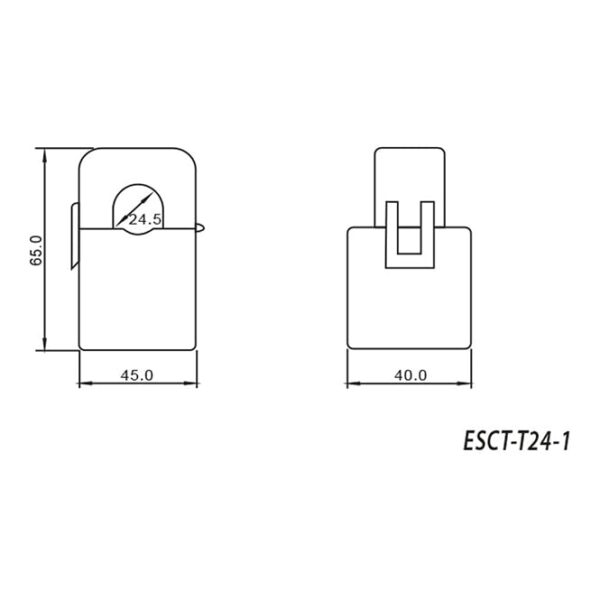

Model Number : ESCT-T24

Usage :

Current

Stage :

Separate

Coil structure Other

Coil number :

More

Frequency :

50Hz/60Hz

Rated current :

from 100A

Window size :

35.7 mm

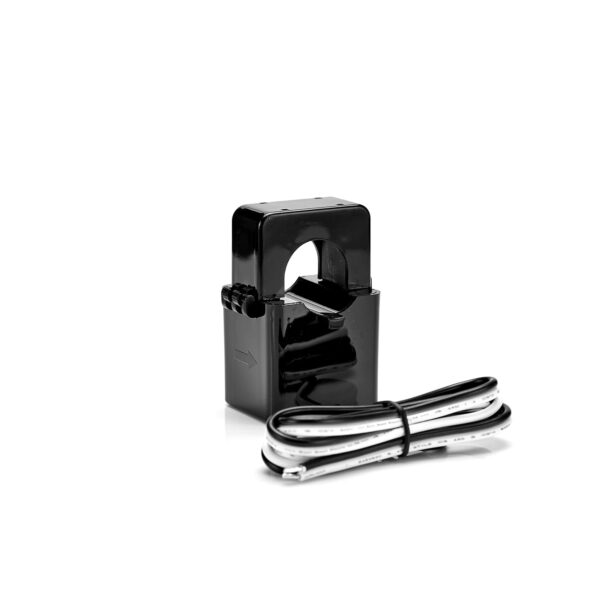

Wire cable :

1 meter sheathed cable

Output :

5A output

Color :

Black

Certification :

THERE IS

Isolation voltage 600 VAC

core :

Permalloy Core

Coil :

PBT

Application

* Current measurement, monitoring and protection for wiring and electrical equipment

* Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air conditioning equipment, and automation.

* Current, power and energy monitoring device

* Relay protection device
